G524B2T11U SOT-23-5 致新Power Distribution Switch芯片 热销！
Features
70mΩ High-Side MOSFET
(G524A,G524B,G524C,G524D)
Available with 4 Versions of Current Limits with
Foldback
Operating Range:2.7V to 5.5V
1mS Typical Rise Time
Fast Overcurrent Response -1.5μs (TYPICAL)
Under voltage Lockout
130μA Quiescent Supply Current
1μA Maximum Shutdown Supply Current
Logic Level Enable Pin, Available with
Active-High or Active-Low Version
No Reverse Current when Power Off
Deglitched Open-Drain Over-Current Flag
Output (OC )
Available with or without Output Shutdown
Pull-low Resister
Output Reverse-Voltage Protection

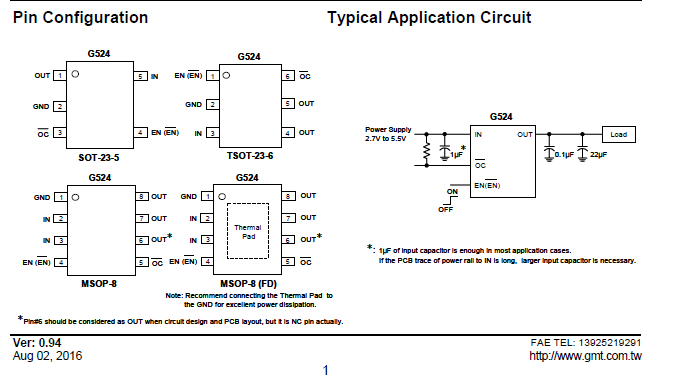

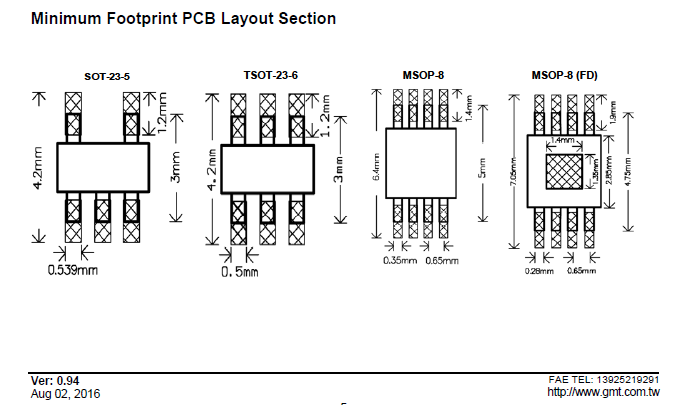

SOT-23-5, TSOT-23-6, MSOP-8 and MSOP-8 (FD)
Packages
UL Certification_#E232223
CB Test Certification by IEC 60950-1:2005 (2nd
Edition); Am 1:2009 + Am 2:2013
Applications
High-Side Power Protection Switch
USB Power Management
USB Host and Self-Powered Bubs
USB Bus-Powered Hubs
Hot Plug-In Power Supplies
Battery-Charger Circuits
G524B2T11U
