G2517AKM1U TQFN 3.5X3.5-24 TFT-LCD集成电源
General Description
The G2517A is a multi-channel power solution for
TFT-LCD, tablet and notebook display panels. The
G2517A includes I2C interface, one synchronous boost
converters for AVDD, one buck converters for Vbuck,
one VGH can be programmable timing and output
voltage, one LDO regulator, two voltage detectors, one
programmable VCOM generator with a high-speed
amplifier for VCOM, one high-speed operation amplifier
for HAVDD, two rail to rail operation amplifiers for
GMA1 and GMA2. This device is suitable for TFT-LCD
panel.

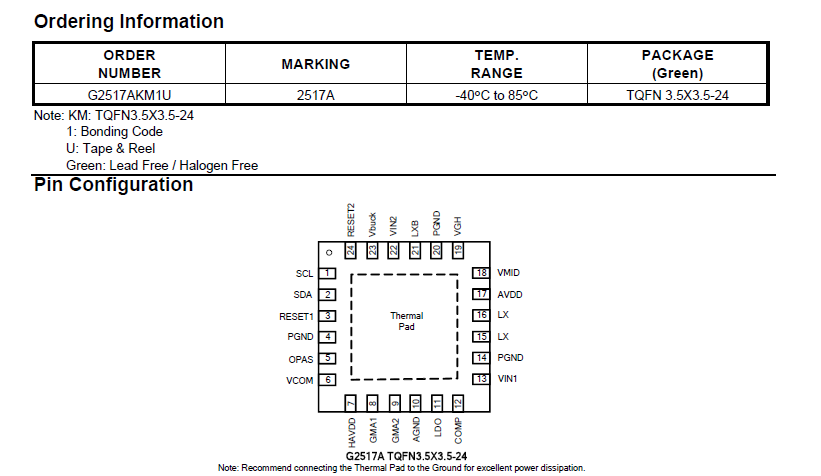

The G2517A is available in a TQFN3.5X3.5-24 pin
package.
Applications
NB PCs
Tablet PCs
