GMT致新G2053FC1U 2A马达驱动器IC
G2053FC1U TSSOP-16 P2P 替代DRV8833,MP6507,AT8833 打印机马达驱动
General Description
The G2053 provides a dual-bridge motor driver solution
for toys, printers, and other mechatronic applications.
The device has two H-bridges and can drive two DC
brushed motors, a bipolar stepper motor, solenoids, or
other inductive loads.
Each H-bridge output consists of a pair of N-channel
and P-channel MOSFETs, with circuitry that regulates
the winding current. With proper PCB design, each
H-bridge of the G2053 can drive up to 700mA RMS (or
DC) continuously, at 25°C with a VM supply of 5V. The
device can support peak currents of up to 1 A per
bridge. Current capability is reduced slightly at lower
VM voltages.
Internal shutdown functions with a fault output pin are
provided for overcurrent protection, short-circuit protection,
UVLO, and overtemperature. A low-power
sleep mode is also provided.

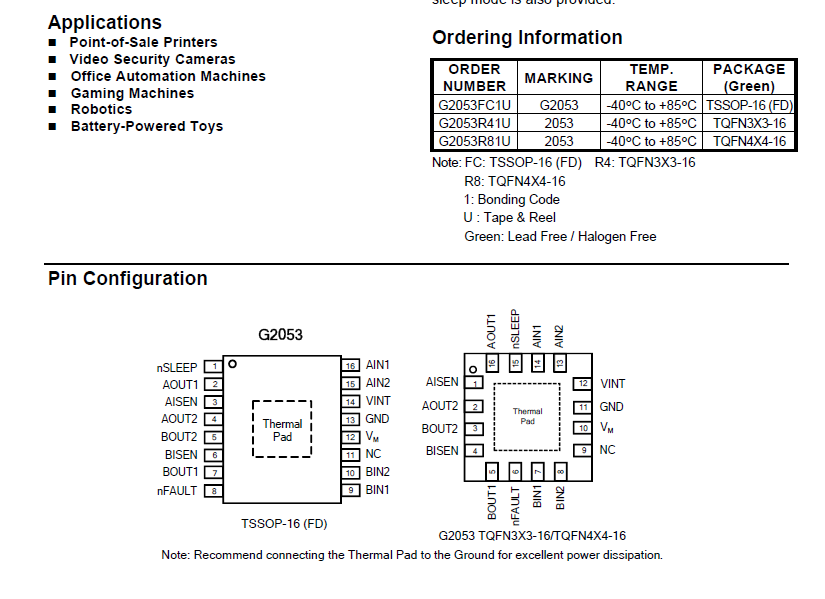

Applications
Point-of-Sale Printers
Video Security Cameras
Office Automation Machines
Gaming Machines
Robotics
Battery-Powered Toys
