科瑞芯推出ETA5060可以直接替代NCP186 --- ETA5060V0D2I
1A，低智商，高精度，快速瞬态低压差电压调节器
DESCRIPTION FEATURES

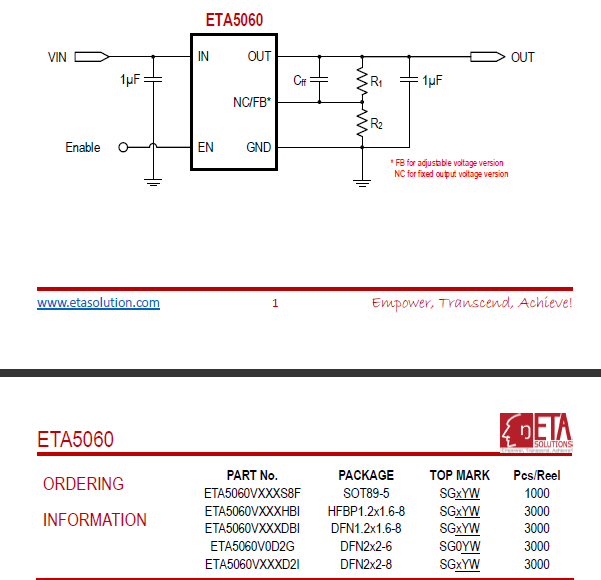

ETA5060 is a low dropout (LDO) voltage regulator
capable of sourcing 1A with only 140mV of
dropout. ETA5060 output is adjustable with
external resistors from 0.8V to 5V. ETA5060 wide
input-voltage range supports operation as low as
1.8V and up to 5.5 V.
ETA5060 is designed to have high accuracy, 2%
at output voltage over line, load, and temperature.
And ETA5060 soft-start capabilities to reduce inrush
current. ETA5060 is ideal for powering
sensitive analog low-voltage devices.
ETA5060 is available in SOT89-5, HFBP1.2x1.6-
8, DFN1.2x1.6-8, DFN2x2-6 and DFN2x2-8
packages.
Programmable Output Voltage Configuration
High Accuracy Output Voltage: ± 2%
Wide Input Voltage Range: 1.8V to 5.5V
Wide Output Voltage Range: 0.8V to 5V
Low Power Consumption: 20μ A Quiescent
Current
Low Dropout: 140mV at 1A
Fast Transient Response
Stable with Small 1μF Capacitor
Inrush Current Protection
Available in SOT89-5, HFBP1.2x1.6-8,
DFN1.2x1.6-8, DFN2x2-6, and DFN2x2-8
APPLICATIONS
USB Ports and Hubs
Digital TVs
Set-Top Boxes
VOIP Phones
