VL600 USB-C DP Alt-mode to HDMI2.0b PCON
VIA Lab的VL600是一款高度集成的单芯片USB-C DP转换模式或DP1.4a到HDMI 2.0b协议自带CC协议的音视频转换芯片。USB-C视频适配器和USB-C多功能接口。集成USB- c UFP CC1引脚和USB拓展设备，单个VL600可以将DP信号转换为4K@60Hz HDMI输出在USB-C设备到HDMI显示器。配备VLI多样化USB PD和Hub控制器，VL600创建各种USB- c多功能基座应用程序，具有USB PD充电通过等功能和安全的FW更新USB4.0或USB3.2 Gen 2/Gen 1的速度。
DisplayPort 1.4a Receiver Interface
– Compliant to VESA DisplayPort Standard Version 1.4a
– DisplayPort 1, 2, and 4 lanes with RBR, HBR, HBR2, HBR3 data rates
– DPCD 1.4 data structure
– VESA Display Stream Compression Standard (DSC) V1.2a decoder with 1/2 slices and FEC
– Bridging DP AUX Channel interface to HDMI DDC interface for EDID Pass-through
– Supports VESA Monitor Control Command Set (MCCS) over AUX
– Supports color formats RGB 8/10/12 bpc and YCbCr 4:4:4/4:2:2/4:2:0 8/10/12 bpc
– RGB/YCbCr color space conversion
– YCbCr 444/422/420 downward conversion
– HDCP 2.3 and HDCP 1.4 repeaters with on-chip keys
HDMI 2.0b Source Interface
– Compliant to High-Definition Multimedia Interface Specification Version 2.0b
– TMDS data rate up to 6Gbps per channel
– Supports up to 3840x2160 @60Hz or 4096x2160 @60Hz under DP1.4 2-lane mode
– Supports color formats RGB 8/10/12 bpc and YCbCr 4:4:4/4:2:2/4:2:0 8/10/12 bpc
– Supports Static High Dynamic Range (HDR) meta data handling
– Audio output up to 8-channel 192KHz LPCM and compressed audio encoding formats
Built-in VESA DP Alt-mode and USB Billboard Device
– Compliant to VESA DisplayPort Alt-Mode on USB Type-C Standard Version 2.0
– Compliant to USB Type-C Cable and Connector Specification Revision 2.0
– Compliant to USB Power Delivery Specification Revision 3.0 Version 1.2
– Built-in CC1 with Rd pull-down resistor and DP Sink Pin Assignment C for USB-C plug connector applications
– DP mode Discovery/Enter/Exit; DP configure, status update, sink connection detection
– Built-in USB Billboard that compliant to USB Device Class Definition for Billboard Devices Revision 1.21
– Integrated in-house USB 2.0 Full-speed PHY
Fast 8051 Macro Cell 80C32-Compatible Microcontroller
– Standard 1T 8051 instruction set with embedded Mask ROM and SRAM
– Supports firmware upgrade by external SPI flash or sharing SPI flash with VLI Hub and/or PD controller
Clock, Power Supply and Power Management
– External 27 MHz crystal oscillator interface
– 1.2V core power supply and 3.3V I/O power supply
– Very low power operation when HDMI HPD is not detected (~25mW); perfect for USB-C portable dongle applications
GPIOs and I2C for Special Function and Control
– 4 GPIOs for application customization and one I2C slave interface
Physical

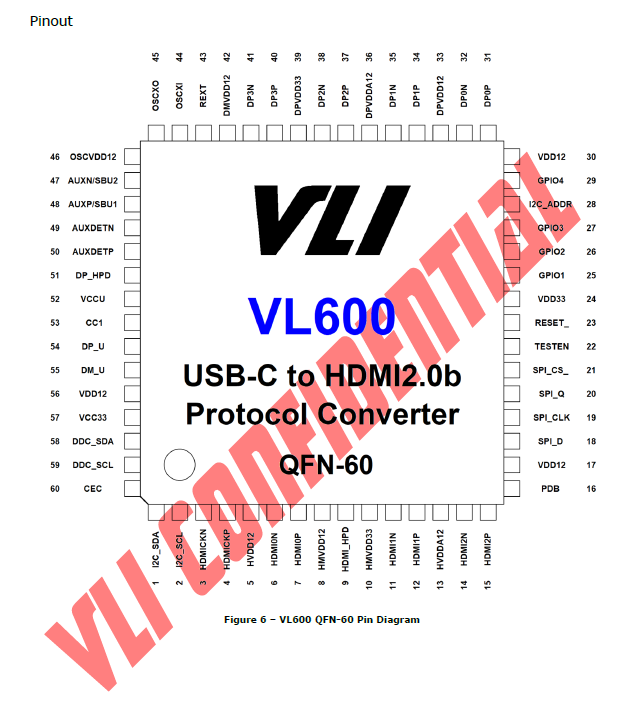

– QFN 60 green package (7x7x0.85 mm)
Certification
– USB-IF PD 3.0 Certification TID: 7019
Applications

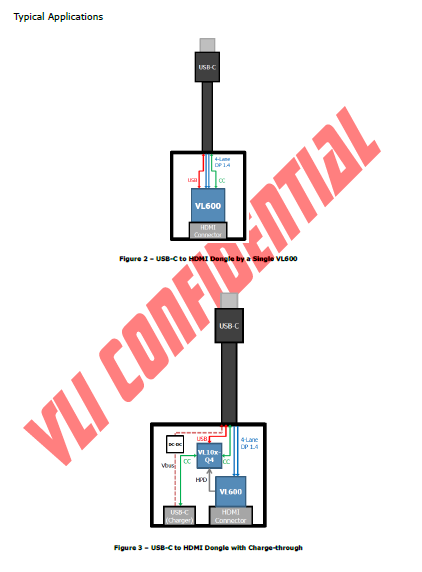

– USB-C to HDMI dongle or Multi-function dongle by VESA DP Alt-mode
– USB4.0 to HDMI Multi-function dongle by USB4 DP tunneling
VL600内置HDCP 1.4和 HDCP 2.3中继器功能，内置按键。DP DSC1.1/1.2a压缩流可被VL600解码为解压缩格式并转换到连接的HDMI接收器。VL600还支持高动态的HDR元数据处理传播范围的内容。HDMI热插拔检测信号由VL600检测到，并输出到DP接收机的热端插入检测引脚或到USB-C DP alt模式接口作为PD命令。 内置8051单片机，与外部SPI flash接口，VL600可将其固件代码存储在独立SPI flash中或与VLI PD/Hub控制器共享SPI flash。固件升级可以通过USB广告牌，I2C从接口，或DP AUX通道。4个GPIO引脚可用于特定的应用程序。VL600可在QFN 60L (7x7x0.85 mm)。
