SCT2320 3.8V-32V Vin, 2A EMI降低的同步降压DCDC变换器
FEATURES
EMI Reduction with Switching Node Ringing-free
500kHz Switching Frequency with 6% Frequency Spread Spectrum FSS
Pulse Skipping Mode PSM with 20uA Quiescent Current in Light Load Condition
3.8V-32V Wide Input Voltage Range
Up to 2A Continuous Output Load Current
0.8V ±1% Feedback Reference Voltage
Fully Integrated 130mΩ Rdson High Side MOSFET and 70mΩ Rdson Low Side MOSFET
1uA Shut-down Current
80ns Minimum On-time
Precision Enable Threshold for Programmable UVLO Threshold and Hysteresis
Low Dropout Mode Operation
4ms Built-in Soft Start Time
Output Over Voltage Protection
Thermal Shutdown Protection at 160°C

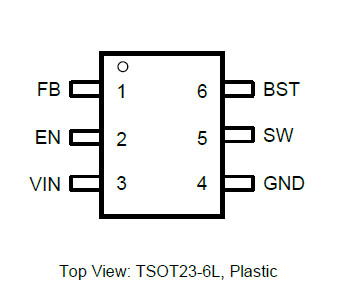

Available in TSOT23-6L Package
