微源品牌 LP3994 宽输入范围高性能LDO
Features
◆ Wide Input Voltage Range: 3.6V to 40V
◆ Maximum Load Current Up to 150mA
◆ Low Quiescent Current 1.5μA typical
◆ Low Dropout Voltage:
550mV @ 100mA Load
850mV @ 150mA Load
◆ Output Voltage Tolerance±1.5% @ 1mA Load
◆ Stable with Minimum 1.0μF Output Capacitance
◆ Short Circuit Current Limit 120mA
◆ Internal Thermal Overload Protection
◆ Excellent Load/Line Transient Response
◆ Line Regulation: 0.01%/V typical
◆ Load Regulation: 0.005%/mA typical
◆ ESD protections

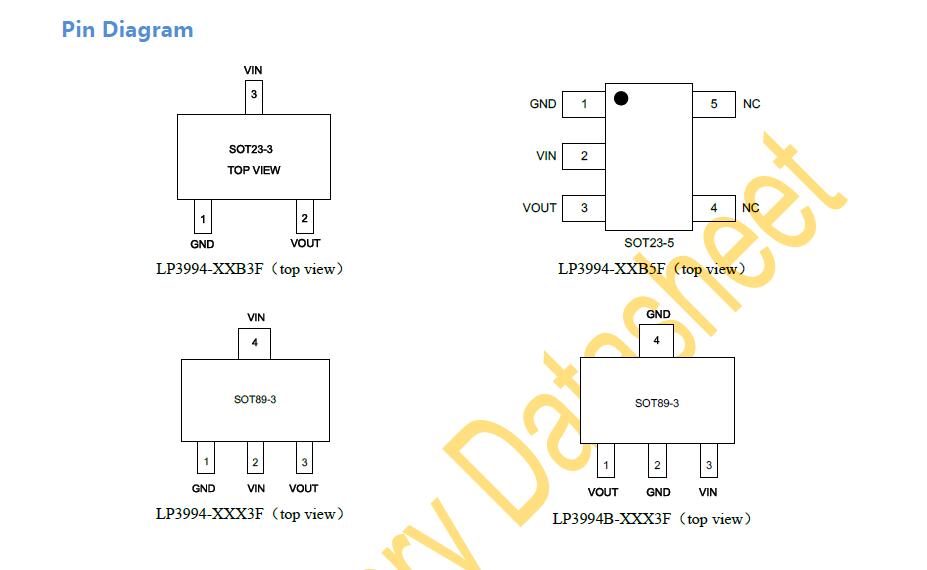

◆ Package: SOT23-3, SOT23-5, SOT89-3
◆ RoHS Compliant and 100% Lead (Pb)-Free
Application
◆ Digital cameras
◆ Audio devices
◆ Portable and battery-powered equipment
◆ Post dc-to-dc regulation
◆ Post regulation
