LPB1001BQVF 微源单电池锂离子电池保护IC

General Description

The LPB1001 product is a highly integrated solution for Li-Ion battery protection. It includes advanced power MOSFETs, precision voltage detection circuitry and delay circuitry for all the protection functions required in battery applications, including overcharge, overdischarge, overcurrent and load short circuit protection. Its accurate overcharge detection voltage ensures a safe and efficient charging cycle. The low standby current allows for almost no battery current to be consumed during storage.

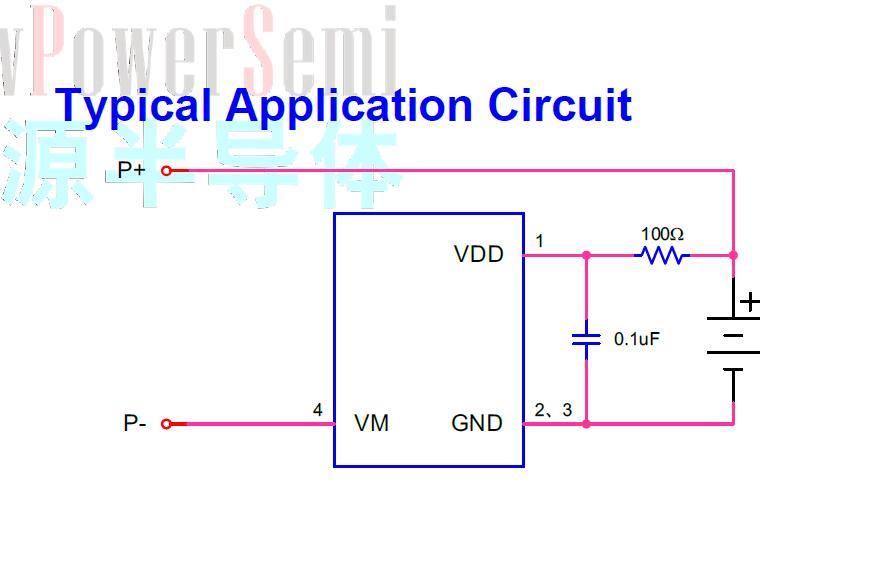

The LPB1001 is available in an ultra-small TDFN-4 package. Its simple peripheral circuit requires only one external capacitor.

This chip is suitable for any electronic device that requires long-term continuous power supply from a Li-Ion battery.

Features
● Protection of Battery Cell Reverse Connection
● Over-temperature Protection
● Integrate Advanced Power MOSFET with Equivalent of 70mΩ RDS(ON)
● Two-step Overcurrent Detection:
Overdischarge Current
Load Short Circuiting
● Overcharge Current Protection
● 0V Battery Charging Function
● Delay Times are generated inside
● High-accuracy Voltage Detection
● Low Current Consumption:
Operation Mode: 1.5μA typ.

Applications
● Any application that requires long periods of power from a Li-Ion battery
