微源 LP28011HQVF 线性充电器 封装TDFN-10

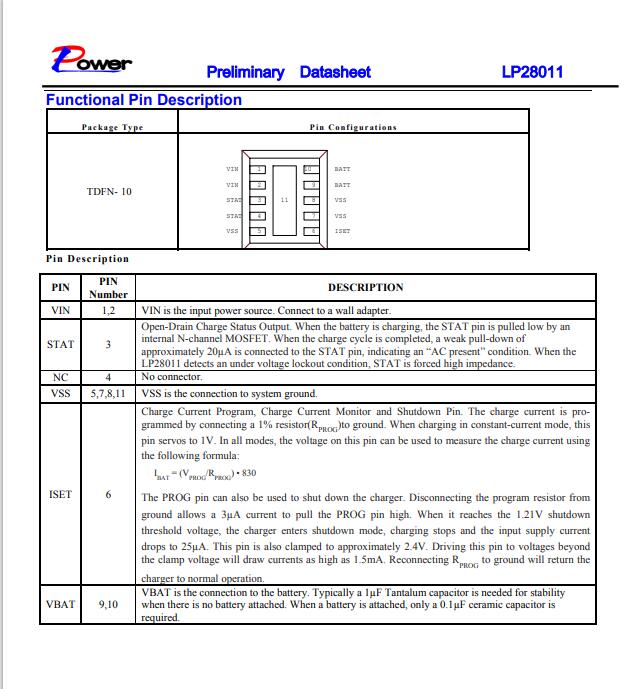

General Description

The LP28011 is a complete constant-current/ constantvoltage linear charger for single cell lithium-ion batteries.Its TDFN-10 package and low external component countmake the LP28011 ideally suited for portable applications.Furthermore, the LP28011 is specifically designed to workwithin USB power specifications. Its have a over voltageprotection in input with 6V and support over zero voltagesof battery can charge enable.

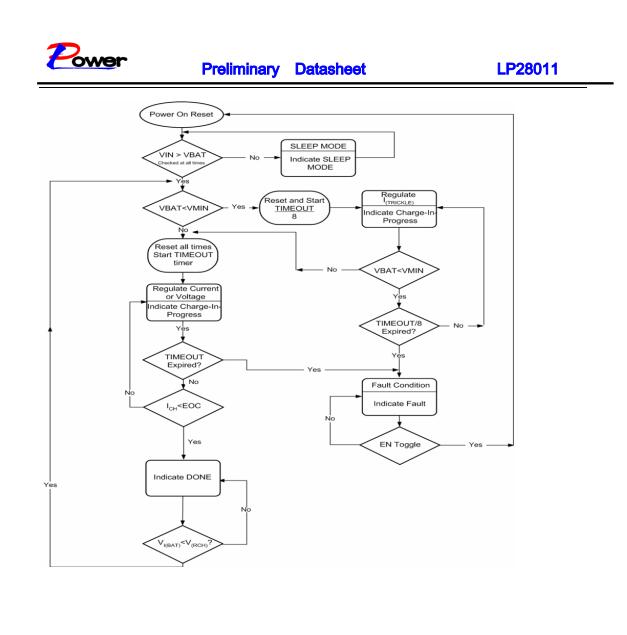

No external sense resistor is needed, and no blocking diodeis required due to the internal MOSFET architecture.Thermal feedback regulates the charge current to limit thedie temperature during high power operation or highambient temperature. The charge voltage is fixed at 4.2V,and the charge current can be ISET rammed externally witha single resistor. The LP28011 automatically terminates thecharge cycle when the charge current drops to 1/10th theISET rammed value after the final float voltage is reached.

When the input supply (wall adapter or USB supply) isremoved, the LP28011 automatically enters a low currentstate, dropping the battery drain current to less than 2μA.The LP28011 can be put into shutdown mode, reducing thesupply current to 25μA.

Other features include charge current monitor, undervoltagelockout, automatic recharge and a status pin to indicatecharge termination and the presence of an input voltage.

Features

◆ Very Low Power Dissipation

◆ Vin Over Voltage Protection:6V

◆ Short-circuit protection

◆ Programmable Charge Current Up to 1000mA

◆ No MOSFET, Sense Resistor or Blocking Diode Required

◆ Constant-Current/Constant-Voltage Operation with Thermal Regulation* to Maximize Charge Rate Without Risk of Overheating

◆ Charges Single Cell Li-lon Batteries Directly from USB Port

◆ 25μA Supply Current in Shutdown

◆ Time Pre-charge Conditioning With Safety Timer Reverse Leakage Protection Prevents Battery

◆ Drainage Charge Current Thermal Regulation Status Outputs for LED or System Interface

◆ Indicates Charge and Fault Conditions

◆ Optional Battery Temperature Monitoring Before and During Charge Automatic Sleep Mode for Low-Power

◆ Consumption Available in 3mm x 3mm TDFN-10 Package

◆ RoHS Compliant and 100% Lead (Pb)-Free

Applications

◆ Portable Media Players/MP3 players

◆ Cellular and Smart mobile phone

◆ PDA/DSC

◆ Bluetooth Applications
