RDS解调器芯片 PT2579 普诚科技 原厂原装
DESCRIPTION

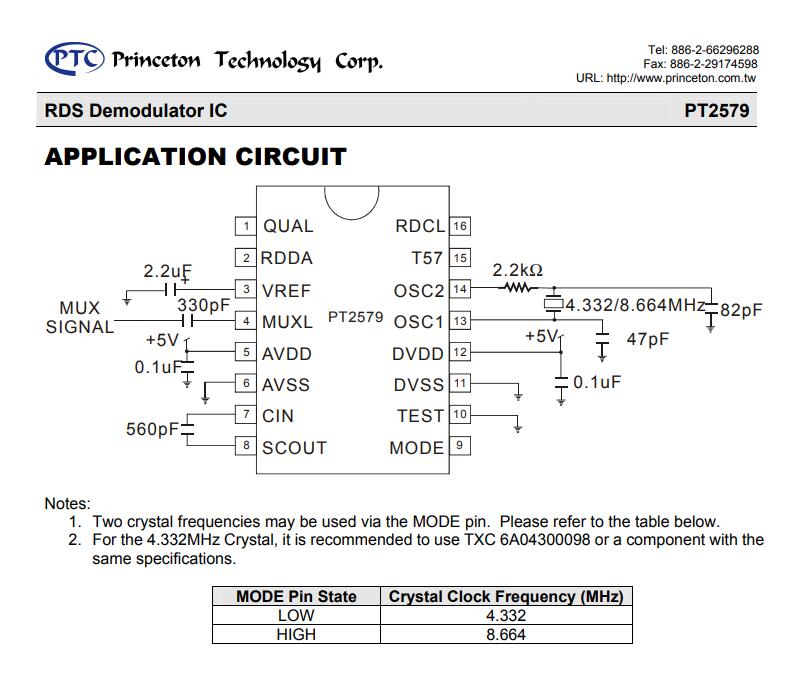

PT2579 is a Radio Data System Demodulator IC utilizing CMOS Technology specially designed forradio data system applications. The RDS data signal (RDDA) and the RDS clock signal (RDCL) areprovided as outputs for further processing by an ideal decoder / microcontroller. Anti-aliasing Filter (2ndorder), 57kHz band pass filter (8th order), reconstruction filter (2nd order), clocked comparator withautomatic offset compensation, biphase symbol decoder, differential decoder, and signal qualitydetector are all built into a single chip having the highest performance and reliability. Pin assignmentsand application circuit are optimized for easy PCB layout and cost saving advantages.
FEATURES
● CMOS Technology
● Low Power Consumption
● Anti-Aliasing Filter (2nd Order)
● Reconstruction Filter (2nd Order)
● 57kHz Band-Pass Filet (8th Order)
● 57kHz Carrier Regeneration
● Differential Decoder
● Signal Quality Detector
● Subcarrier Output
● Selectable 4.332 / 8.664 MHz Crystal Oscillator with Variable Dividers
● Synchronous Demodulator for 57kHz Modulated RDS Signals
● Clocked Comparator with Automatic Offset Compensation
● Clock Generation with Lock on Biphase Data Rate
● Biphase Symbol Decoder with Integrate and Dump Functions

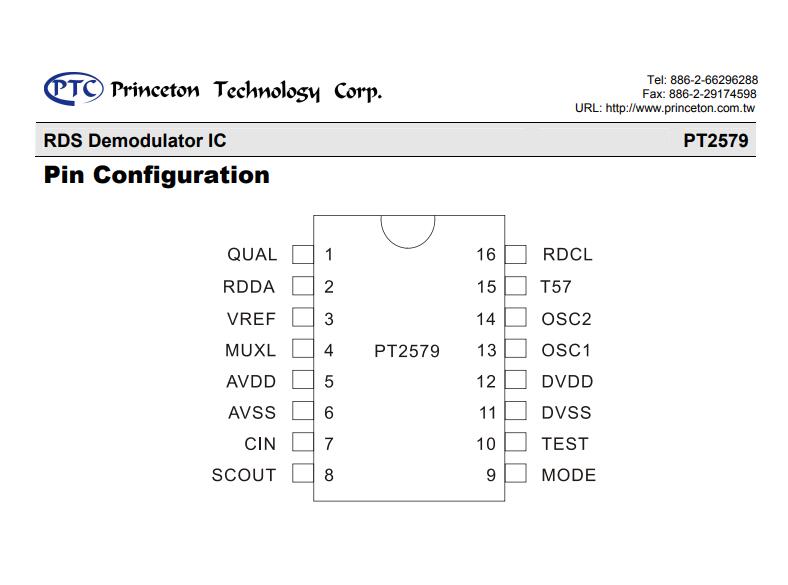

● Available in 16 pins, DIP or SOP Package
APPLICATIONS
● Car Radio
● Home Stereo Tuner
