Description
The PA2460 is a high-power and high-efficiency Power Amplifier (PA) IC for handheldapplications in the 130MHz to 500MHz band. The design is based on Gallium ArsenideHetero-junction Bipolar Transistor (GaAs HBT) process.
Features
● Single 2.7V to 6V Supply Voltage
● +33dBm Output Power for 3.5V to 6V
● 55% Efficiency

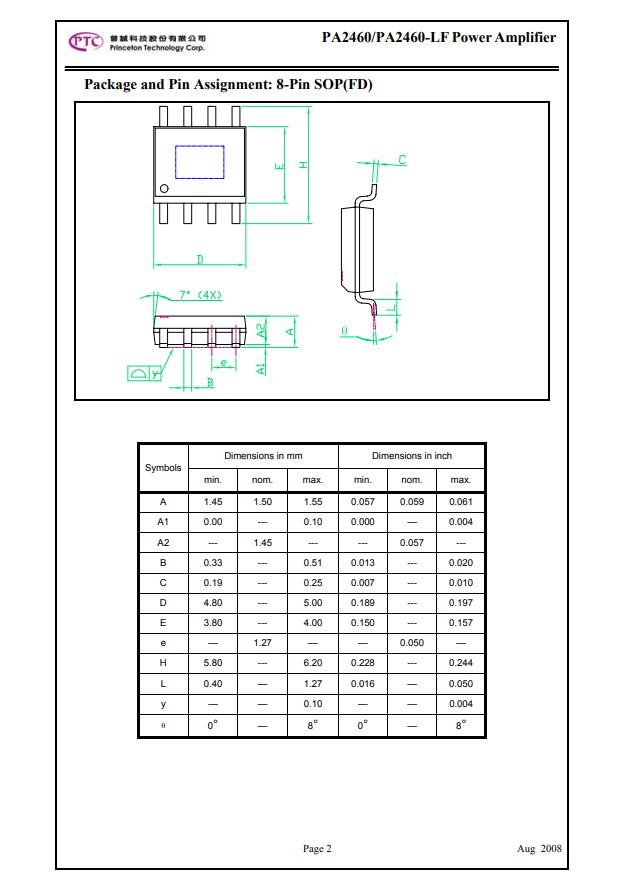

● 8-pin SOP(FD) package (5mm x 4mm)
Applications
● FRS, GMRS Handsets
● Commercial and Consumer Systems
● Portable Battery-Powered Equipment
● Long distance Remote Control
