原厂原装 RS6501 普诚2A PWM降压转换器

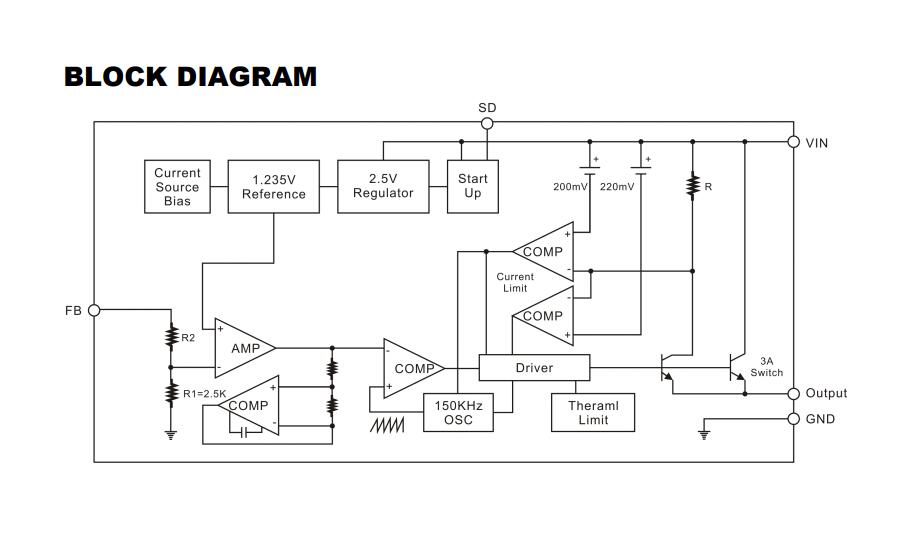

DESCRIPTION
The RS6501 is Monolithic IC that design for a step‐down DC/DC Converter, and own the ability of drivinga 2A load without additional transistor component.The output version included 3.3V, 5V, 12V and anadjustable type. It operates at a switching frequency of150KHz thus allowing smaller sized filter componentsthan what would be needed with lower frequencyswitching regulators. Other features include aguaranteed ±4% tolerance on output voltage underspecified input voltage and output load conditions, and±15% on the oscillator frequency. Regardingprotected function, thermal shutdown is to prevent overtemperature operating from damage, and current limitis against over current operating of the output switch.
FEATURES
● 3.3V, 5V, 12V and adjustable
● Adjustable version output voltage range: 1.23 37V
● +4% max over line and load conditions
● 150KHz +15% fixed switching frequency
● TTL shutdown capability
● Operating voltage can be up to 40V
● Output load current: 2A
● SOP 8 package
● Low power standby mode
● Thermal shunt down and current Himit protection
● Built-in switching atransistor on chip, requires only 4 external components

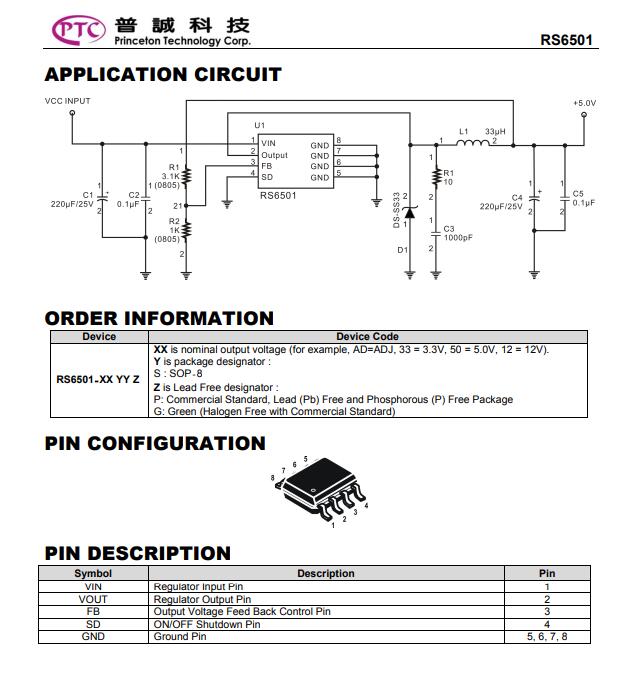

APPLICATIONS
● Simple High-efficiency step-down regulator
● Positive to negative converter
● On-card switching regulators
