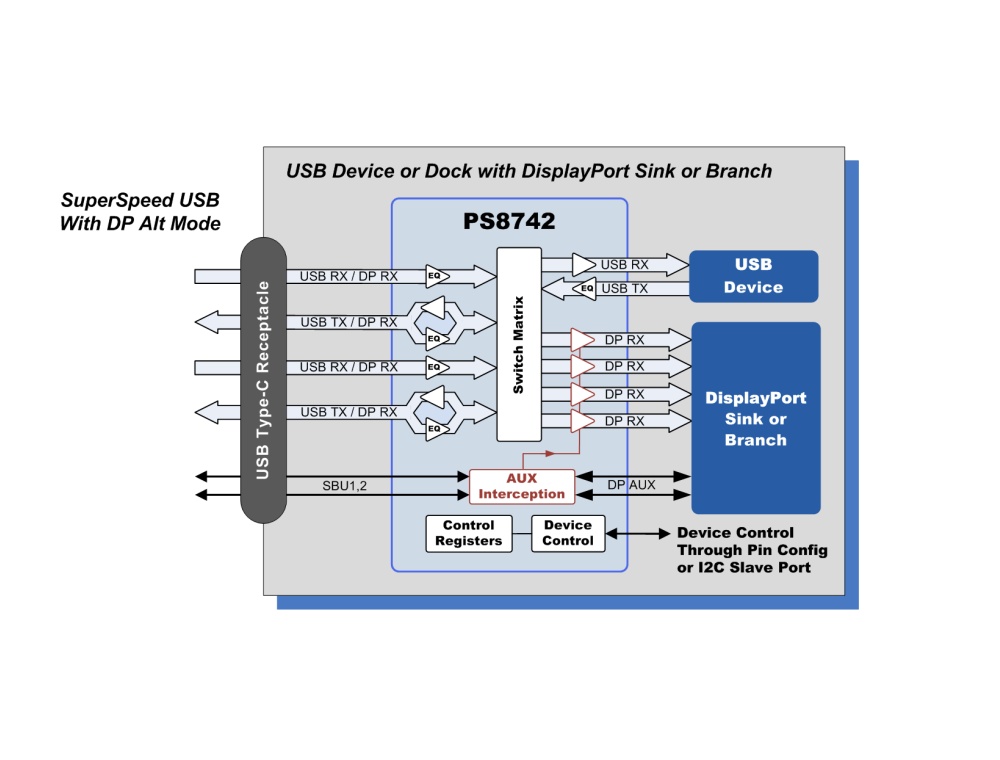

PARADE谱瑞 PS8742VQFN40GTR-A1 USB-C接收器开关芯片

KEY FEATURES

● Flexible USB Type-C switching supports all signaling combinations specified in USB Type-C and VESA DisplayPort Alt Mode Standards

● Supports USB 3.1 Gen 1 data rate of 5Gbps, and DisplayPort data rates up to 5.4Gbps (HBR2)

● Input equalizers on all inputs to overcome high speed signal loss in PCB trace and external cable

● Active drivers on all outputs to assure reliable signal integrity

● Automatic output driver adjustment for DisplayPort path utilizing field-proven AUX interception during link training (patented by Parade Technologies)

● Switching modes are pin controllable through GPIO or I2C control

● Ultra low standby power

● Supports auto power saving for DisplayPort and USB

● 4x6mm 40-pin QFN Halogen free RoHS package

● Device power supply options:

PS8742A, dual supply:  3.3V and (1.2V or 1.35V)

PS8742B, single supply:  3.3V

● ESD:  Human Body Mode at 8kV

APPLICATIONS

● Docking Stations

● Personal Computer Monitors

● TVs
