低压H桥驱动器G2056，G2056F11U台湾致新新品热售中

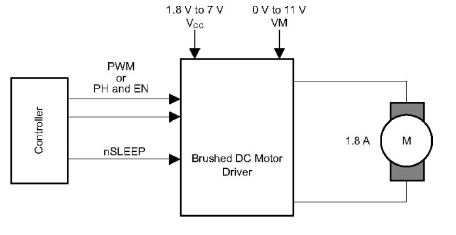

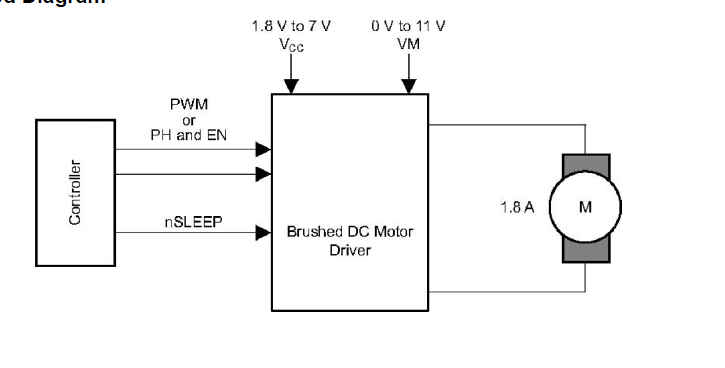

     The G2056x family of devices provides an integrated motor driver solution for

cameras, consumer products, toys, and other low-voltage or battery-powered motion

control applications. The device can drive one dc motor or other devices like

solenoids.

       The output driver block consists of N- channel power MOSFETs configured as an

H-bridge to drive the motor winding. Aninternal charge pump generates needed gate

drivevoltages.

The G2056x family of devices can supply up to 1.8A of

output current. It operates on a motor power supply

voltage from 0 to 11V, and a device power supply

voltage of 1.8V to 7V.

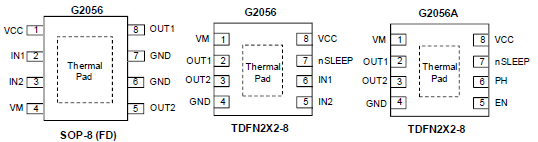

G2056F11U         SOP-8 (FD)

G2056RC1U         TDFN2X2-8

G2056ARC1U         TDFN2X2-8
