| 型号： | SC8329 |
| 厂 商： | 上海 |
| 品牌/商标: | 南芯 |
| 产品类别： | 南芯/SOUTHCHIP- |
| 联系人: | 颜先生/William |
| 电话： | 0755-82170220,21001680 |

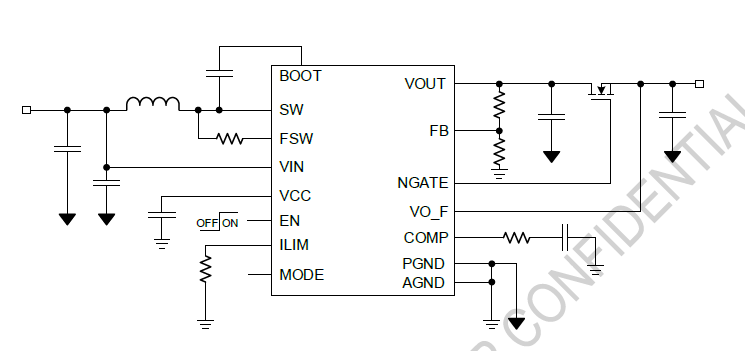

20A开关电流，19V输出--SC8329--带隔离NMOS驱动器的同步升压
SC8329产品特点：
Wide input operating voltage from 2.7 V to 13 V
Wide output range, from 4.5 V to 19V
Up to 20-A programmable switching current limit
Integrated 6 mΩ and 11 mΩ Power MOSFETs
PFM and PWM mode selection
1.0 μA shutdown current
Adjustable switching frequency: 200 kHz to 2.2 MHz
Full protection of UVLO, OVP, OCP, OTP
Short circuit protection with Isolation NMOS driver

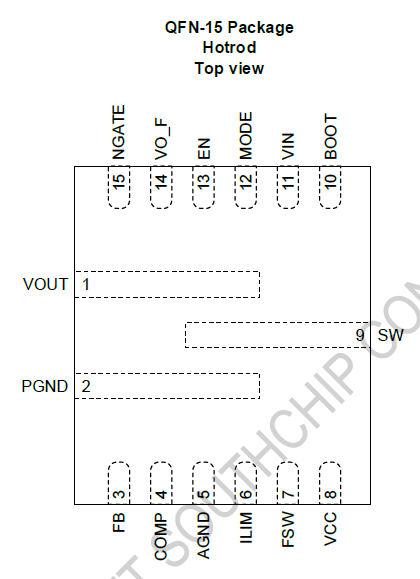

Available in QFN-15 package (4.0mm×3.0mm)
型号：SC8329
封装：QFN-15
产品尺寸：4mm x 3mm x 0.75mm
包装：3000pcs/盘
