产品详情

              USB单端口智能充电控制器VP203，深圳科瑞芯电子现货供应！

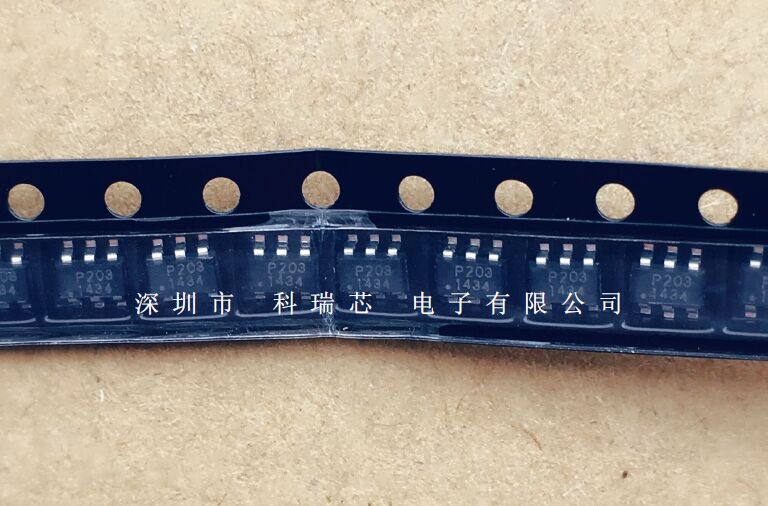

产品型号：VP203

封装：SOT-23-6

包装：3000pcs/盘

VP203产品特点：

•  Supports USB DCP Shorting D+ Line to D- Line per USB Battery Charging Specification, Revision 1.2

•  Meets Chinese Telecommunication Industrial Standard YD/T 1591-2009

•  Supports USB DCP applying 2.7V on D+ line and 2.7V on D- line

•  Supports USB DCP applying 1.2V on D+ and D- lines

•  Automatic selection of D+/D- mode for an attached device

•  Single USB Port Controller

•  Ambient operating temperature: -20C to 85C

•  Available in SOT23-6 package

•  Lead(Pb)-Free and RoHS compliant

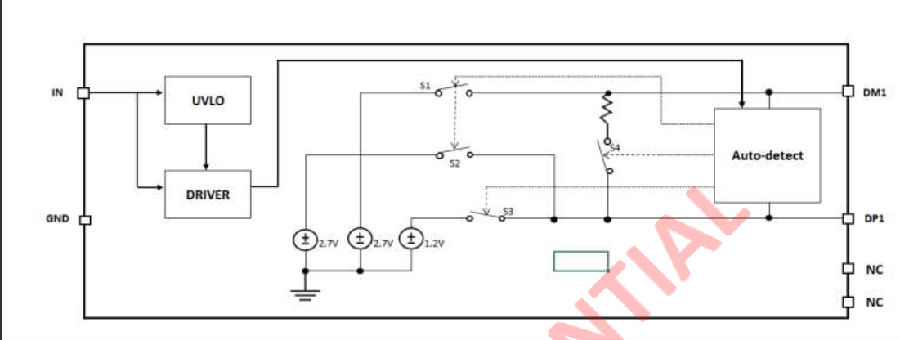

VIA Lab’s VP203 is an USB single port smart charging controller, and it provides the electrical

protocol handshake on D+/D- to

support the following battery charging schemes:

(1) USB 2.0 Battery Charging Specification 1.2 (BC 1.2),

(2) Chinese Telecommunication Standard YD/T 1591-2009.

(3) Divider mode, complaint with most of Apple® devices.

(4) DCP 1.2V Mode, compliant with Samsung devices.
