产品详情

上海钰泰（ETA) 2A开关充电器ETA9741，ETA9741E8A现货热销

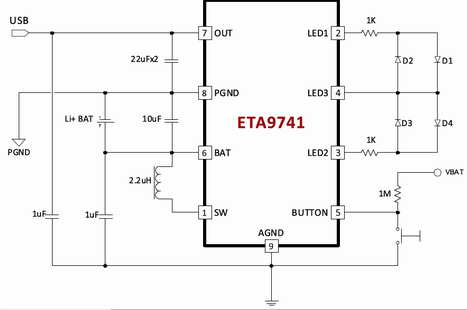

        ETA9741 is a switching Li-Ion battery charger capable of delivering 2A of charging current to

the battery and also capable of delivering up to 5V/2.4A in boost operation, with high efficiency in

both charging mode and boost mode. It also includes a fuel gauge system for power indication.

For charging, it uses a proprietary control scheme that eliminates the current sense resistor for

conventional constant current control, maximizing efficiency, reducing charging time and reducing

costs. It can also output a 5V voltage in the reversed direction by boosting from the battery.

ETA9741产品特点：

• ETA9741是5V-2A充放电的移动电源芯片

• 常开5V

• 带有LED手电筒

• 固定5V-2.1A充电

• 自动负载启动

• 内置9V耐压能力

• 可用于移动电源

• 自带4个LED电量灯

• 采用了ESOP8封装。
