18V/4A高压同步降压转换器ETA1486,ETA1486E8A-T钰泰原装供应

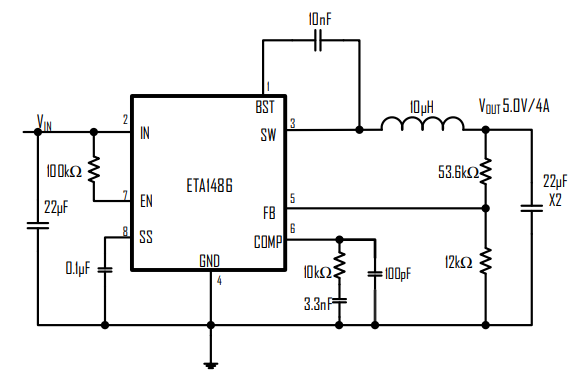

The ETA1486 is a wide input range, high-efficiency, DC-toDC step-down switching
regulator, capable of delivering up to 4A of output current. Current mode PWM
control allows the use of small external components, such as ceramic input and
output caps, as well as small inductors, while still providing low output ripples. On top
of the integrated internal synchronous rectifier that eliminates external Schottky
diode, ETA1486 also employs a proprietary control scheme that switches the device
into a power save mode during light load, thereby extending the range of high
efficiency operation. Therefore, ETA1486 is a much superior solution in comparison to
other competitions in terms of efficiency and cost.
产品型号:ETA1486E8A-T
封装:ESOP-8
产品应用:机顶盒、LCDTV、LCD显示器、家庭网关、无线路由器、玩具、车载DVD、Irobot
自动扫地机、AC供电的其他电子产品。
产品特性:
Wide Input Operating Range from 4.5V to 18V
High Efficiency: Up to 95% at Light Load
Capable of Delivering 4A
No External Schottky Diode Needed
Inductor Short Circuit Protection
Current Mode control
0.923V Reference for Low Output voltages
Logic Control Shutdown
Thermal shutdown and UVLO
Available in ESOP8 Package
