产品详情

3A高效率DC-DC降压开关稳压器ETA1471，ETA1471FT2G原装

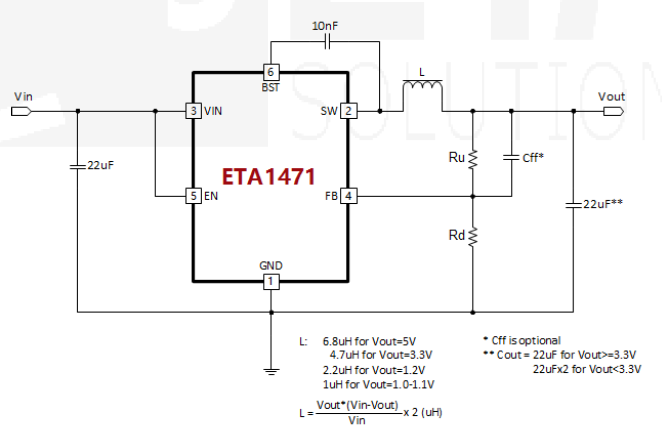

          ETA1471  is a wide input range, high-efficiency and high frequency DC-to-DC step-down switching regulator, capable of delivering up to 3A of output current. With a fixed switching frequency of 500KHZ, this current mode PWM controlled converter allows the use of small external components.  such as ceramic input and output caps, as well as small inductors. ETA1471 also employs a proprietary control scheme that switches the device into a power save mode during light load, thereby extending the range of high efficiency operation. The IC can stand off input voltage as high as 25V, making it an ideal solution for industrial applications such as LCD TV, Set Top Box, Portable TV.etc

型号：ETA1471FT2G

封装：FCTSOT23-6

包装：3000pcs/Reel
