型号: | ETA6071Q3U |
厂 商: | 上海 |
品牌/商标: | 钰泰 |
产品类别: | 钰泰/ETA- |
联系人: | 颜先生/William |
电话: | 0755-82170220,21001680 |
ETA6071Q3U高效率锂离子电池升压充电器,ETA6071钰泰原装
ETA6071 is a wide input range, high effiiency, synchronous 2-cell series Li-lon battery cell boost charger. It accepts input from 2.7V to 7V and is capable of delivering up to 2.5A charge Current to two stacked Hon batteries. The charging curent and termination voltage can both be programmed through extemal resistors. There are also an input Current limit setting and a dynamic input power management setting. These features can be used for limiting the charging current when a weak power source is plugged in.
产品型号:ETA6071Q3U

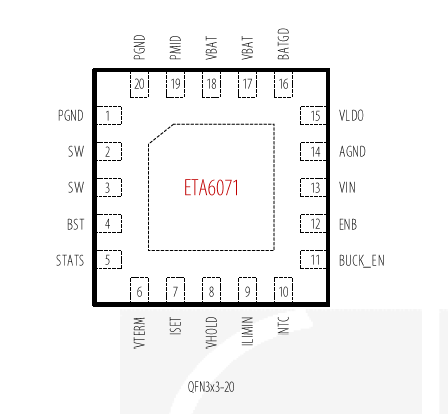

封装:QFN3X3-20
包装:5000pcs/盘
产品特点:
2.5A Charging with up to 95% Eficiency
High voltage input standoff up to 16V
Input current limit and DPM setting
External programmable CC/CV setting
NIC thermistor input
Charaer statusindication
True-shutoff Boost
Bi-directional Power conversion with Single Inductor
Tiny QFNBX3 package
