产品详情

台湾致新H桥电机驱动器G2057，G2057F11U科瑞芯深圳供应，

保证原装正品，假一赔十！

      The G2057/G2057A provides a versatile motor driver solution with a variety of capabilities. The

device contains a full H-bridge which can be used to drive a brushed DC motor, one winding of a

stepper motor, or other devices such as solenoids. Two logic inputs provide directly interfacing to

controller circuits.

      The output stages use four N-channel power MOSFETs configured as an H-bridge. The

G2057/G2057A capable of peak output currents up to ±3.5A and operating voltages up to 40V.

A low-power standby mode is provided which shuts down internal circuitry to achieve a very low quiescent current draw.

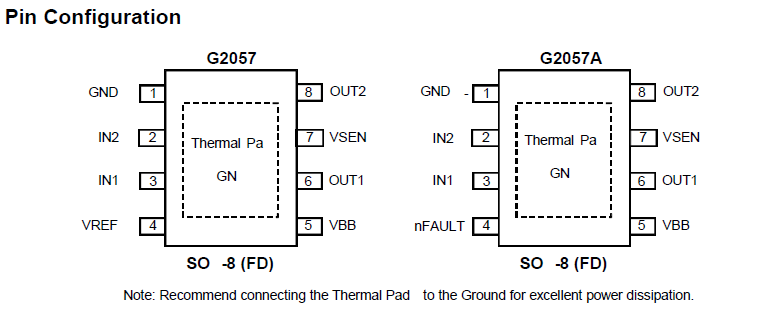

G2057F11U                SOP-8 (FD)

G2057AF11U                  SOP-8 (FD)

产品应用：

1.  Printers

2.  Industrial Automation

3.  Robotics
