产品详情

G2264 3A, 1.5MHz, COT Synchronous Step-Down Converter.

产品型号：G2264 / G2264HEX

封装：SOT23-6/TDFN-8

包装：3000pcs/盘

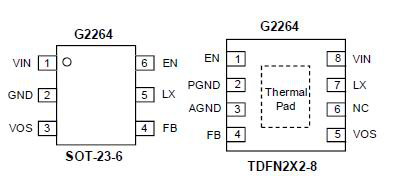

封装示意图：

产品特点：

• Efficiency Up to 95%

• 120mΩ and 60mΩ Internal Power MOSFET

• VIN Range 2.6V to 5.5V

• Adjustable Output Voltage from 0.45V to VIN

• Power Save Mode for Light Load Efficiency

• Constant-On-Time Control Scheme Design for Fast Transient Response, Stability with MLCC Output Capacitor

• 100% Duty Cycle for Lowest Dropout

• 17uA Operating Quiescent Current

• Fixed Soft-Start 0.9ms

• Output Discharge

• Cycle-by-Cycle Over Current Protection

• Input Under Voltage Lockout

• Output Under Voltage Protection (Hiccup)

• Thermal Shutdown Protection
