台湾致新（GMT）新品热销低压H桥驱动器G2056系列——G2056F11U

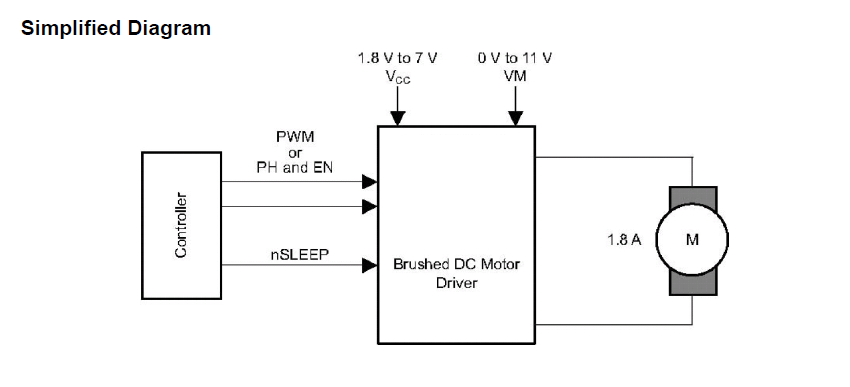

      The G2056x family of devices provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device can drive one dc motor or other devices like solenoids. The output driver block consists of N- channel power MOSFETs configured as an H-bridge to drive the motor winding. An internal charge pump generates needed gate drive voltages.

        The G2056x family of devices can supply up to 1.8A of output current. It operates on a motor power supply voltage from 0 to 11V, and a device power supply voltage of 1.8V to 7V.

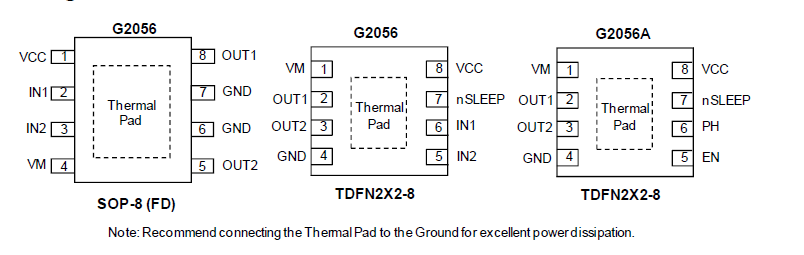

The G2056 device has a PWM (IN1-IN2) input interface; the G2056A device has a PH-EN input interface;. Both interfaces are compatible with in dustry-standard devices.
Internal shutdown functions are provided for overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature.

型号：G2056F11U

封装：SOP-8

包装：2500pcs/盘
