ETA4554TSO-4位双向电压电平转换器开路漏极和推挽应用 钰泰原装

FEATURES

No Direction-Control Signal Needed
Data Rates
24Mbps (Push-Pull)
2Mbps (Open-Drain)
1.65V to 5.5V on A Ports and 2.3V to 5.5V on B
Ports (VCCA ≤ VCCB)
VCC Isolation: If Either VCC is at GND, Both Ports are
in the High-Impedance State
No Power-Supply Sequencing Required: Either VCCA
or VCCB can be Ramped First
IOFF: Supports Partial-Power-Down Mode Operation
Available in QFN1.7x2.0-12, QFN2x2-14, QFN3x3-
16, QFN3.5x3.5-14 and TSSOP-14 Packages

APPLICATIONS
I2C/SMBus
UART
GPIO

型号：ETA4554TSO

封装：TSSOP-14

包装：4000

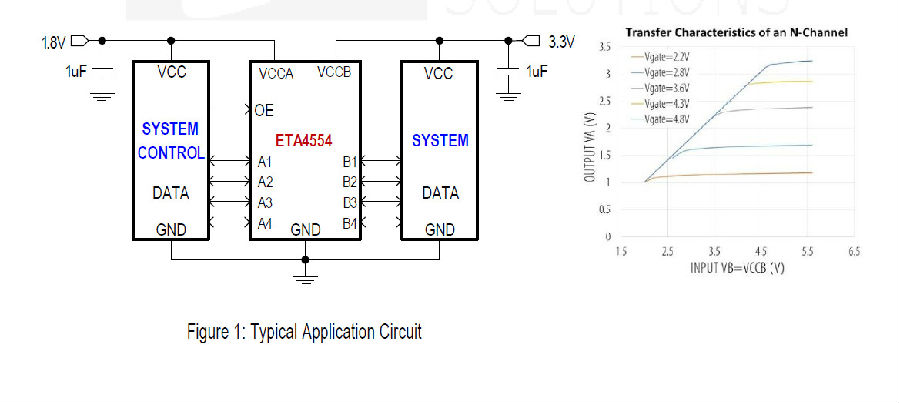

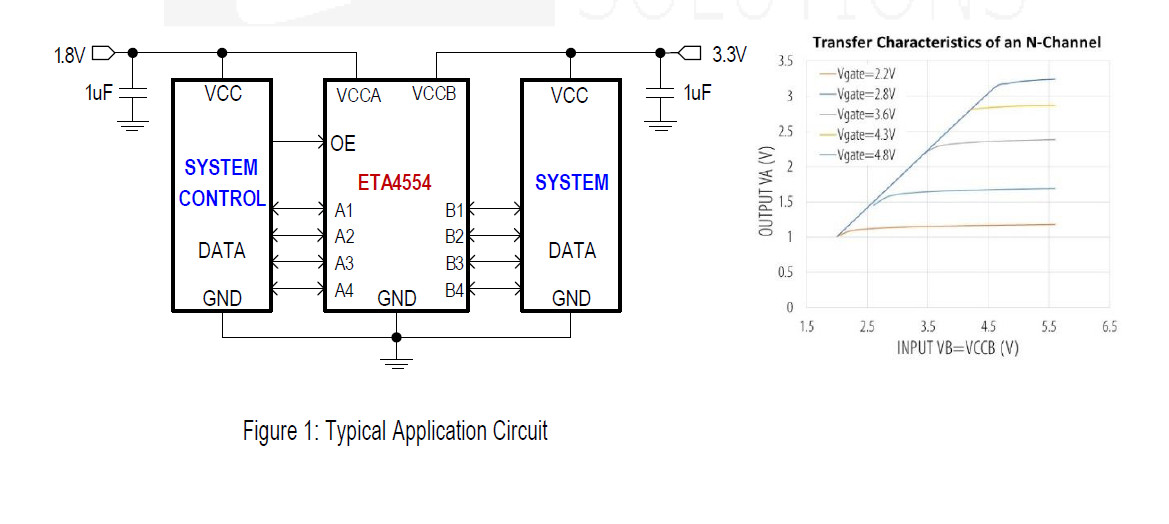

应用原理图：
