ETA（钰泰） ETA1060D2G DFN2x2-6 高效的同步升压变换器

1.2μA Ultra Low IQ 1A Synchronous Boost Converter in SOT23-6 and DFN2x2-6 Package
ETA1060 is a high efficiency synchronous step-up converter with ultra-low quiescent current down to 1.2μA. It is capable of delivering 2W of power, i.e. 0.4A at 5V output. It also features a true-shutoff function that disconnects the input from output during shutdown and output short-circuit conditions.

Features
Ultra Low IQ when No Switching :1.2μA
Output Disconnect
Short-Circuit Protection
5V/0.4A Output Power
Output to Input Reversed Current Protection
Up to 94% Efficiency
Internal Synchronous Rectifier
Current Mode Control
Logic Control Shutdown and Thermal Shutdown
SOT23-6 & DFN2x2-6 Package

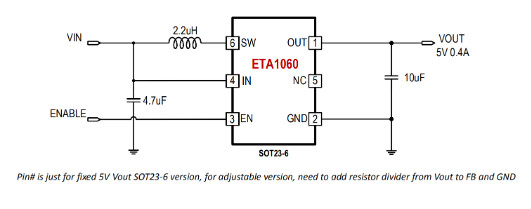

典型的应用程序：
