ETA（钰泰）ETA1032CSJ CSP1.2x1.2-9 2.5MHz, 1.5A输入电流

2.5MHz, 1.5A Input Current, DC-DC Boost Converter in CSP 1.2x1.2
ETA1032 is highly efficient 2.5 MHz, 1.5A input current, step-up DC-to-DC converters. ETA1032 convert input voltages from 2.5 V to 5.25 V to a fixed output voltage of 5V.

Features
Up to 95% DC-DC Efficiency
Up to 1. 5A Max input current
Output Disconnect
Short-circuit Protection
Output to Input Reversed Current Protection
45μA No load IQ and light load PFM Mode; BYPASS MODE
Current Mode control
Logic Control Shutdown and Thermal shutdown
Fixed 5V Output Voltage
CSP1.2×1.2-9 package

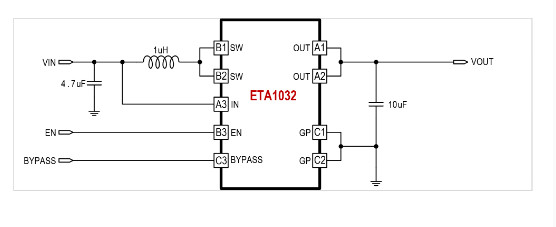

典型的应用程序：
