ETA（钰泰） ETA8291D3K DFN3x3-10 双18V, 2A，高效率同步降压变频器

Dual 18V, 2A, High Efficiency Synchronous Step-Down Converter
ETA8291 is a Power Management Unit(PMU) with 2 channels of wide input range, high efficiency DC-to-DC step-down switching regulators. Each channel is capable of delivering up to 2A of output current.

Features
Wide Input Range: 3.5V-18V
Dual 2A Max Output Current
Adaptive COT Control
Ultra-fast Load Transient Response
High Efficiency PFM mode at Light Load
High Efficiency Synchronous Operation
Low Rdson Internal Power FETs
No External Compensation Needed
Thermal Shutdown and UVLO
RoHS Compliant

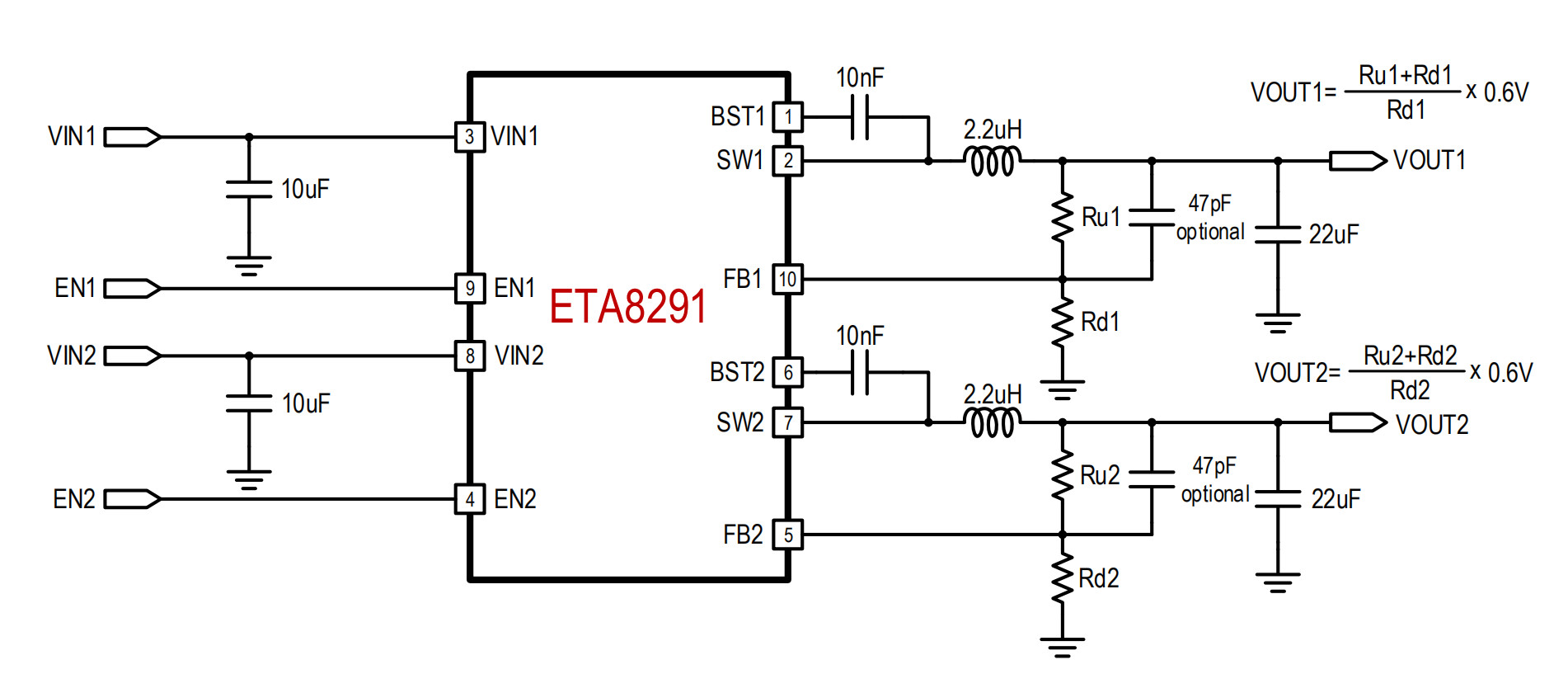

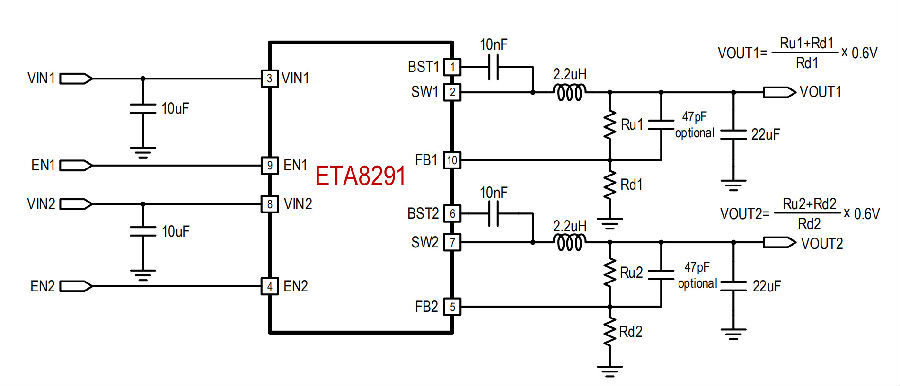

典型的应用程序：
