产品详情

ETA9880V435E8A 20V对峙，2.4A充电器和2.4A升压一体化解决方案

20V Standoff, 2.4A Charger and 2.4A Boost for Power Bank All-in-One Solution
ETA9880 is a switching Li-Ion battery charger capable of delivering up to 2.4A of charging current to the battery and also capable of delivering up to 2.4A in boost operation. ETA9880 includes a power path from IN to OUT, a buck charger, a 5V boost converter, and a fuel gauge for power indication. The buck charger guarantees a 93.5% average efficiency at ...

Features
20V Input Standoff Voltage
Bi-Directional Power Conversion with Single Inductor
Power Path from IN to OUT
Automatic Mode Switching
Switching Charger
5V Synchronous Boost
Up to 96% Efficiency
No External Sense Resistor
LEDs for Battery Level Indication and Charge/Discharge Status Indication
RoHS Compliant

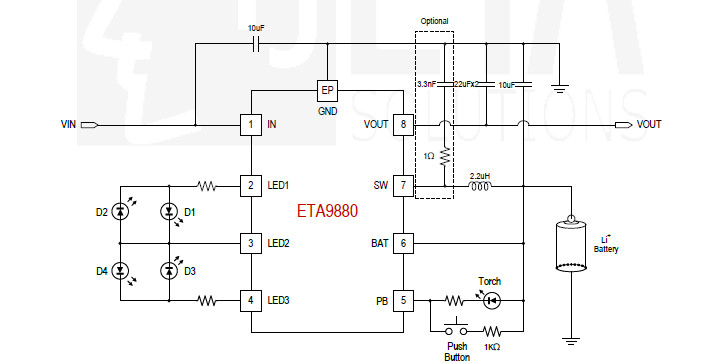

应用电路图：
