| 型号： | ETA3416S2F |
| 厂 商： | 中国 |
| 品牌/商标: | ETA |
| 产品类别： | 钰泰/ETA- |
| 联系人: | 颜先生/William |
| 电话： | 0755-82170220,21001680 |
ETA（钰泰） ETA3416S2F SOT23-5 1.5A, 3MHz降压转换器
1.5A, 3MHz Step-Down Converter in SOT23-5 Package
The ETA3416 is a high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 1.5A of output current. The devices operate from an input voltage range of 2.6V to 7V and provide output voltages from 0.6V to VIN, making the ETA3416 ideal for low voltage power conversions.
Features
Up to 96% Efficiency
Up to 1.5A Max Output Current
3MHz Switching Frequency
Light Load operation
Internal Compensation
Tiny SOT23-5L Package

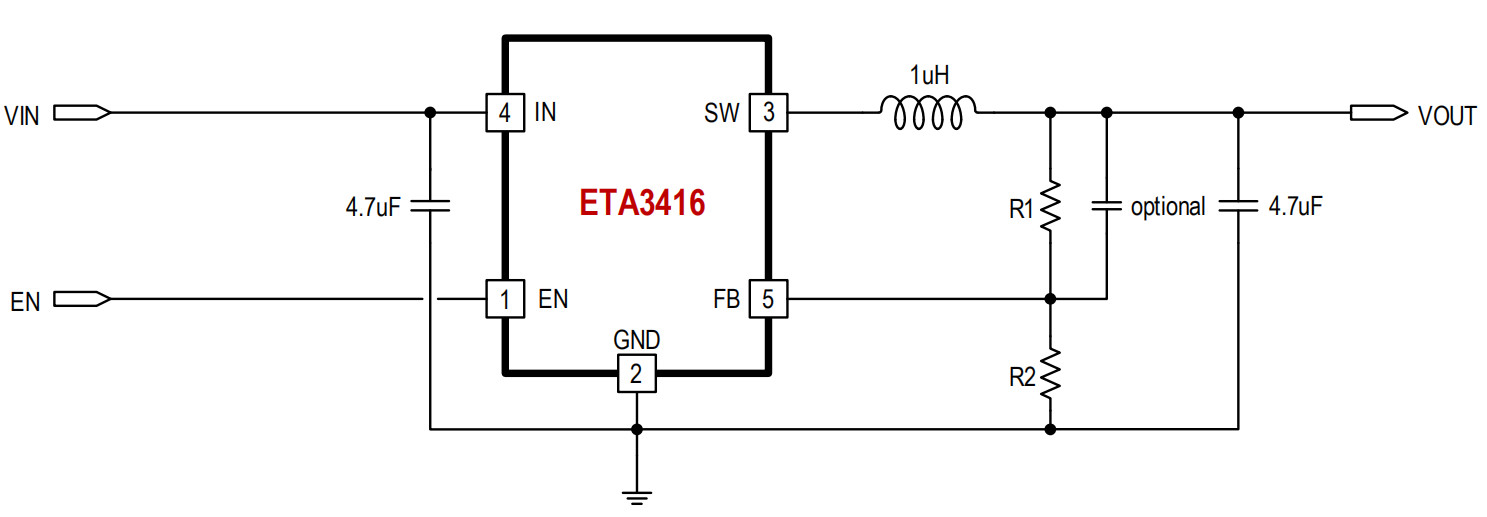

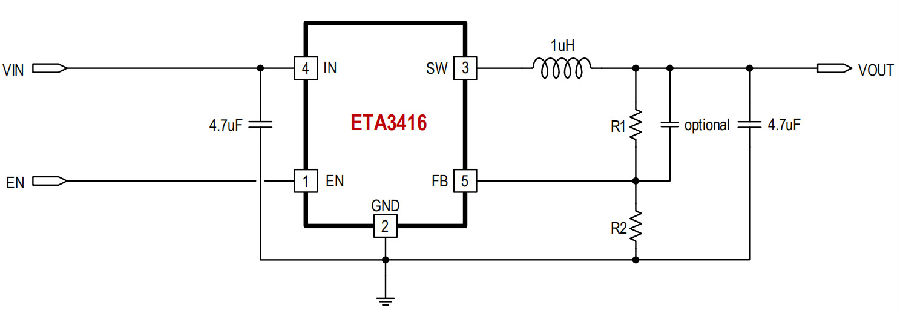

应用电路图：
