ETA（钰泰） ETA2236D3K DFN3x3-10 35V/3A同步降压变换器

35V/3A Synchronous Step-Down Converter in FCTSOT23-6
The ETA2807 is a high-efficiency DC-to-DC step-down switching regulator that is capable of delivering up to 3A of output current. The device operates with wide input voltage range from 4.6V to 35V, making it ideal for high voltage USB charging applications.

Features
Wide Input Voltage Range: 4.6V-35V
40V Input Standoff Voltage
High Efficiency PFM Mode at Light Load
Capable of Delivering 3A Output Current
100% Duty Cycle
Support CC/CV Output
Cord Compensation Function
Current Mode Control
Thermal Shutdown and UVLO
Available in FCTSOT23-6 Package

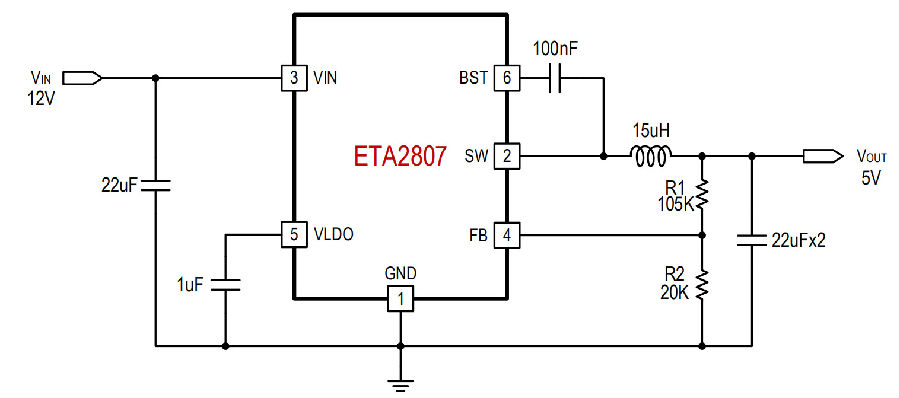

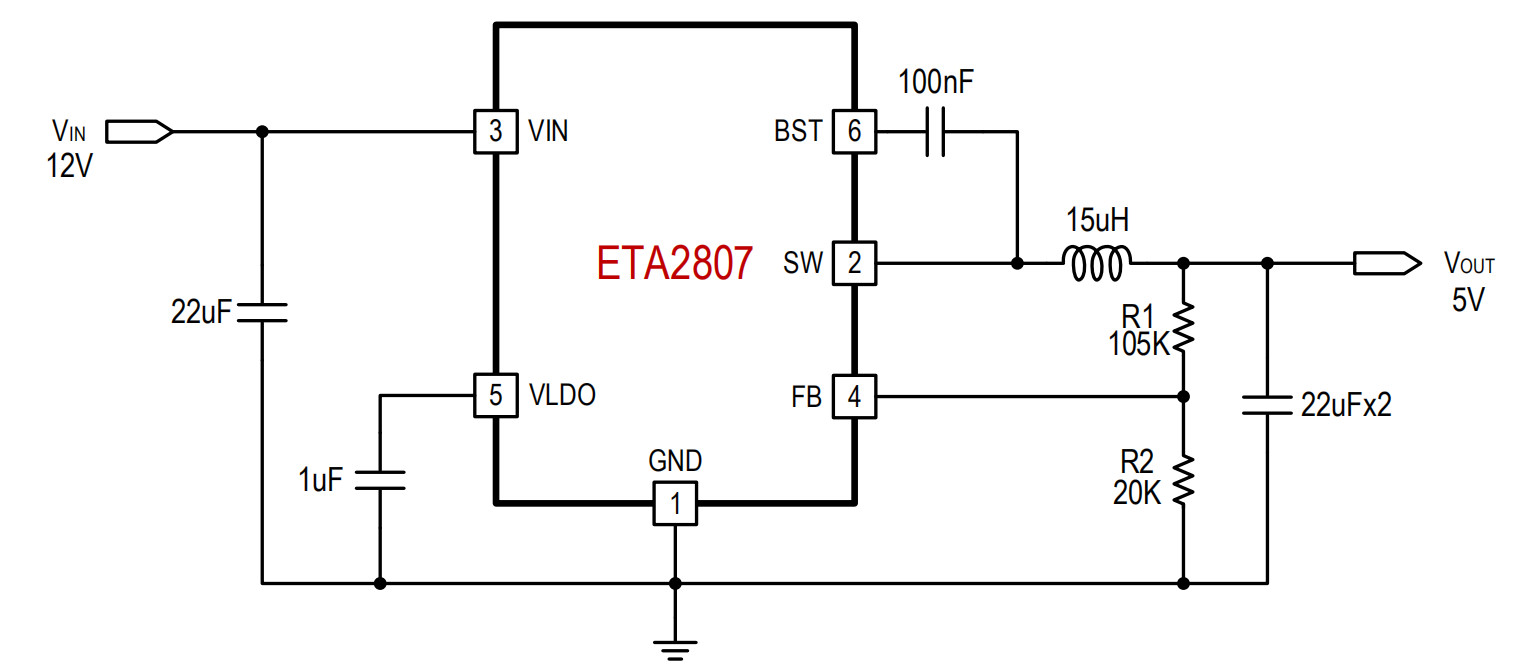

应用电路图：
