ETA（钰泰） ETA1656D2G DFN2x2-6 18V, 5A高效同步降压变换器

18V, 5A, High Efficiency Synchronous Step-Down Converter in DFN2x2-6
ETA1656 is a wide input range, high efficiency and high frequency DC to DC step-down switching regulator, capable of delivering up to 5A of output current. It adopts an Adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies from light load to heavy load.

Features
Wide Input Range: 4.5V-18V
Adaptive COT Control
Ultra-Fast Load Transient Response
High Efficiency PFM Mode at Light Load
Low Rdson Internal Power FETs
Capable of Delivering up to 5A
Thermal Shutdown and UVLO
Available in DFN2x2-6

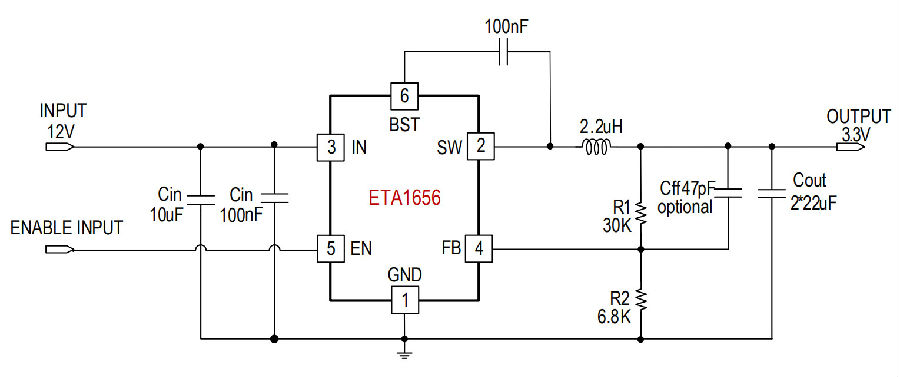

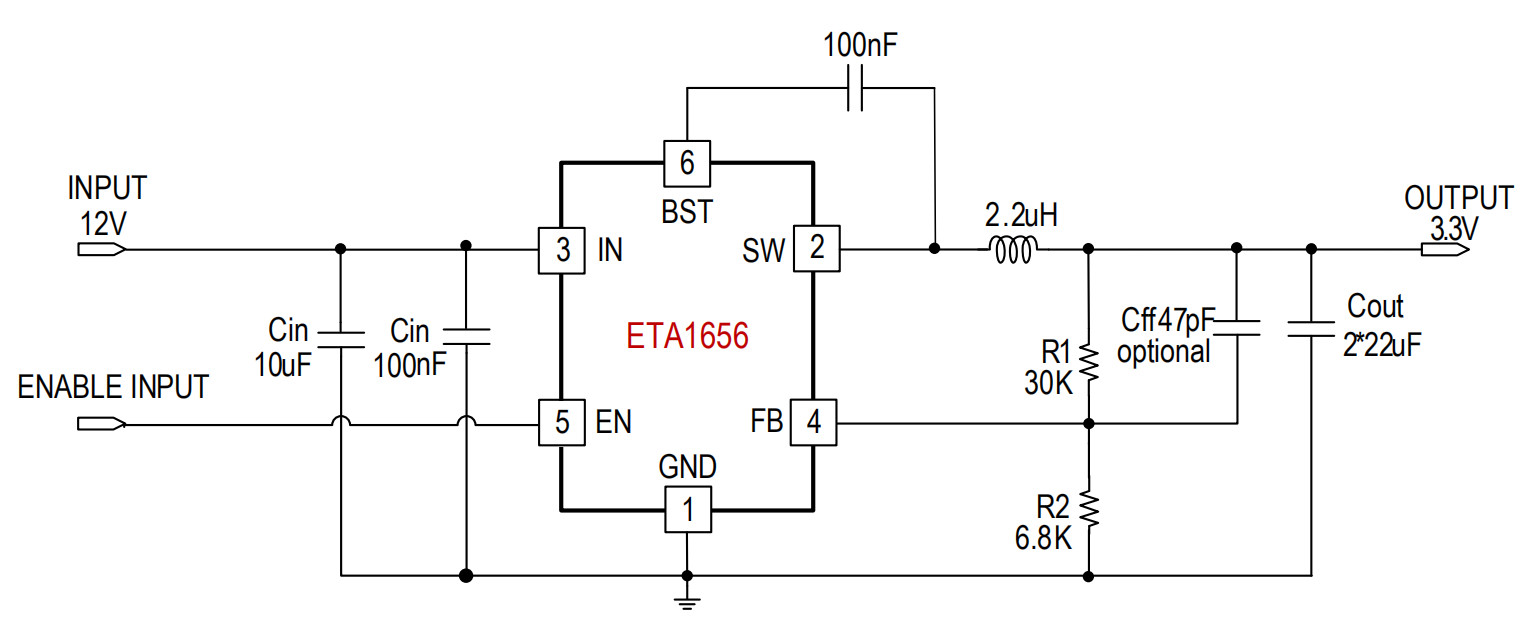

应用电路图：
