ETA(钰泰) ETA1655FD2G FCDFN2x2-6 18V, 4.5A高效同步降压变换器
18V, 4.5A, High Efficiency Synchronous Step-Down Converter in FCDFN2x2-6
ETA1655 is a wide input range, high efficiency and high frequency DC to DC step-down switching regulator, capable of delivering up to 4.5A of output current. It adopts an Adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies from light load to heavy load.
Features
Wide Input Range: 4.5V-18V
Adaptive COT Control
Ultra-Fast Load Transient Response
High Efficiency PFM Mode at Light Load
Low Rdson Internal Power FETs
Capable of Delivering up to 4.5A
Thermal Shutdown and UVLO
Available in FCDFN2x2-6

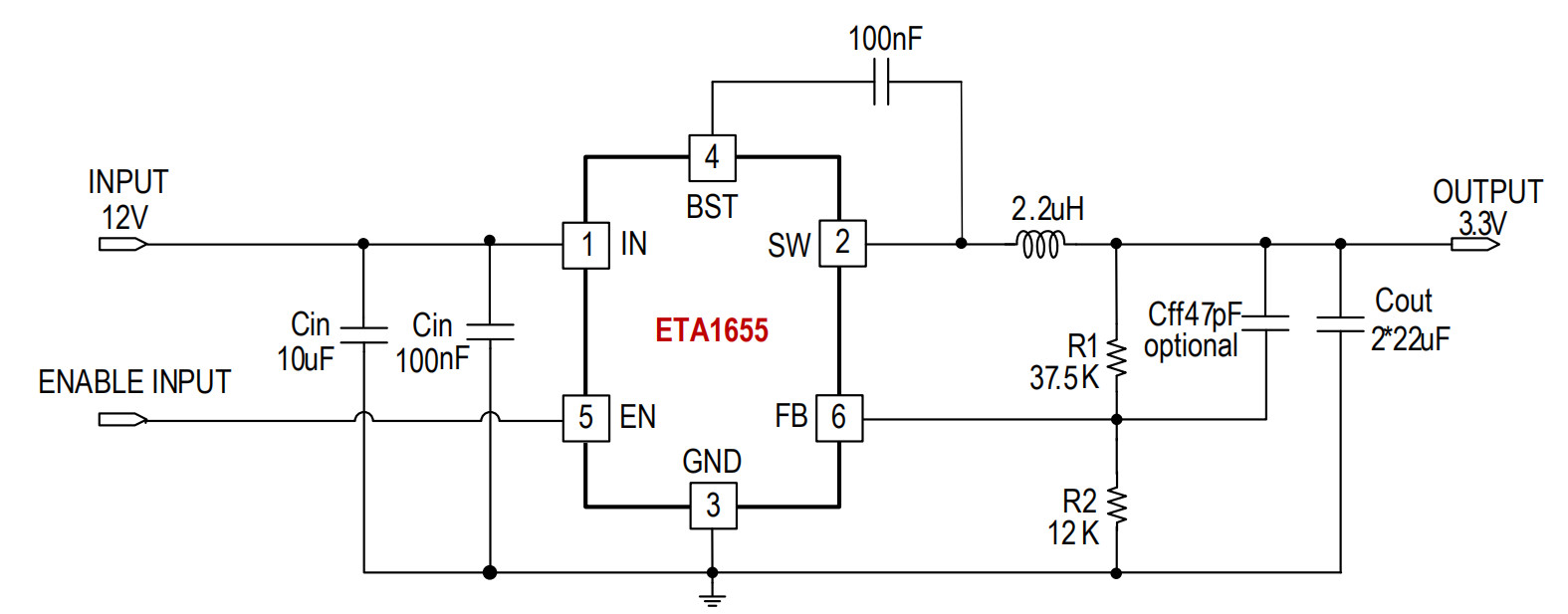

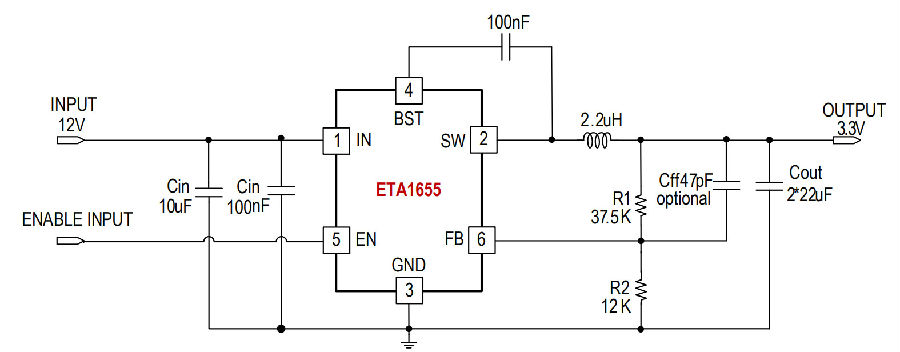

应用电路图:
