产品详情

ETA（钰泰） ETA1476FT2G FCTSOT23-6 18V, 2A高效同步降压变换器

18V, 2A, High Efficiency Synchronous Step-Down Converter in FCTSOT23-6
ETA1476 is a wide input range, high-efficiency and high frequency DC-to-DC step-down switching regulator, capable of delivering up to 2A of output current. With a fixed switching frequency of 500KHz, this current mode PWM controlled converter allows the use of small external components, such as ceramic input and output caps, as well as small inductors.

Features
Wide Input Range: 4.5V-18V
High Efficiency PFM mode at light load
Capable of Delivering 2A
No External Compensation Needed
Current Mode Control
Thermal Shutdown and UVLO
Excellent Load and Line Transient Response
Available in FCTSOT23-6 Package

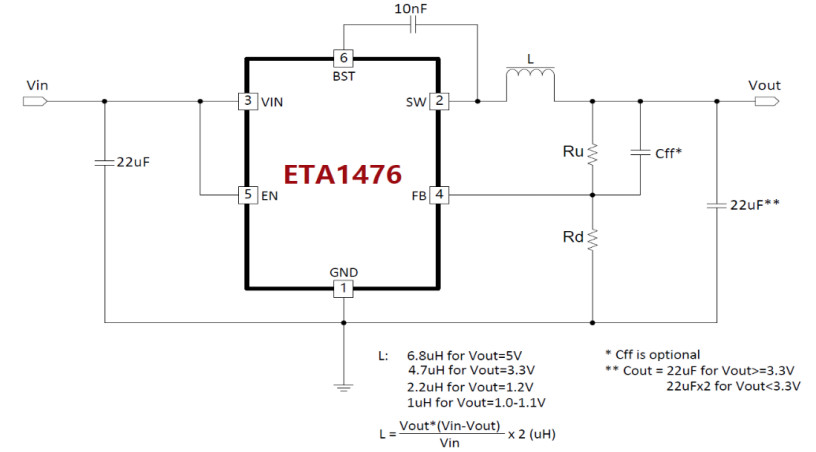

应用电路图：
