1.2A/16V全集成线性1 Cell锂离子电池充电器

1.2A/16V Fully Integrated Linear Charger for 1 Cell Li-ion Battery
ETA40563 is a single cell, fully integrated constant current (CC)/constant voltage (CV) Li-ion battery charger. Its compact package with minimum external components requirement makes the ETA40563 ideal for portable applications. No external sense resistor or blocking diode is necessary for the ETA40563. Build-in thermal feedback mechanism regulates the ch...

Features
16V Input Standoff Voltage
4.35V Charge Termination Voltage
2.93V Trickle Charge Threshold
Charge Current Programmable, Up to 1.2A
250nA BAT Current when No Charging
Soft-start Limits in-rush Current
DFN2x2-8 Package
RoHS Compliant

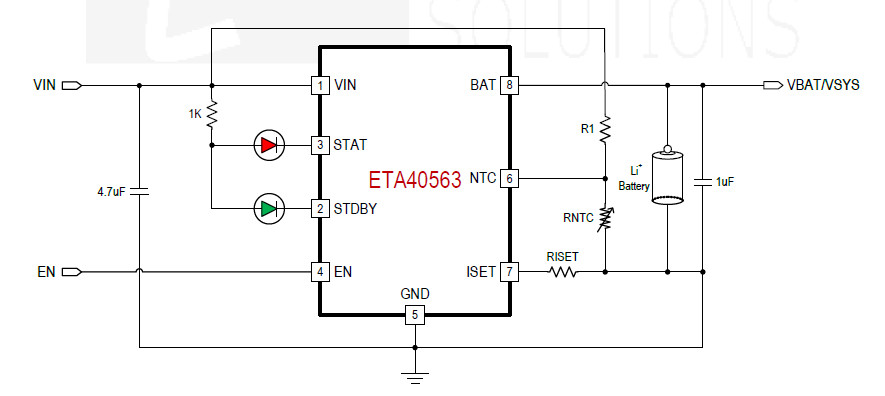

应用电路图：
