产品详情

16V/120mA, 1mA终端电流线性充电器

16V/120mA, 1mA Termination Current Linear Charger
ETA4016 is a single cell, fully integrated constant current (CC)/constant voltage (CV) Li-ion battery charger. Its compact package with minimum external components requirement makes the ETA4016 ideal for portable applications. No external sense resistor or blocking diode is necessary for the ETA4016. Build-in thermal feedback mechanism regulates the charg...

Features
16V input standoff voltage
4.2V charge termination voltage
1mA termination current
2.9V trickle charge threshold
Charge current programmable, up to 120mA
250nA BAT current when no charging
Soft-start limits in-rush current
DFN2x2-8

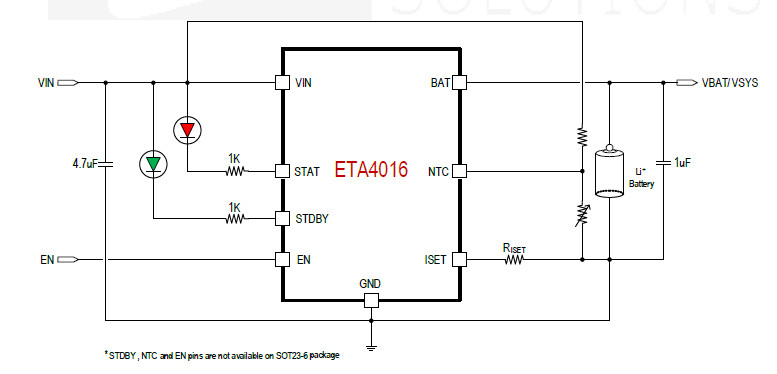

应用电路图：
