32V输入僵局电压，2.5A开关模式电池充电器在BAT时超低1uA静止电流

32V Input Standoff Voltage, 2.5A Switching Mode Battery Charger Ultra-Low 1uA Quiescent Current at BAT
ETA6298 is a high efficiency, switching Li-Ion battery charger capable of delivering up to 2.5A of charging current to the battery. For charging, it uses a proprietary control scheme that eliminates the current sense resistor for conventional constant current control, maximizing efficiency, reducing charging time and reducing costs. An OVP function protec...

Features
Switching Charger
Ultra-Low 1uA Quiescent Current at BAT
32V Input Standoff Voltage
Input Over Voltage Protection
60ns Fast OVP Transient Response
Up to 94% Efficiency
Up to 2.5A Max Charging Current
No-Battery detection
No External Sense Resistor
DFN3x3-10 Package
RoHS Compliant

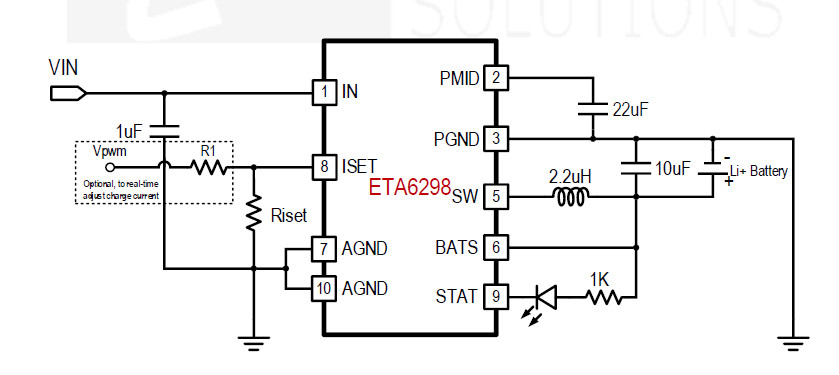

应用电路图：
