超低功耗PMU，带有16V线性充电器和5V升压转换器

Ultra Low Power PMU with 16V Linear Charger and 5V Boost Converter
ETA9695 is an ultra low power PMU with 2 channels: a 16V single cell Li+ battery linear charger and a 5V Boost synchronous converter with true-shutoff function. The linear charger is fully integrated with constant current (CC) / constant voltage (CV) control module and charge FET, with minimal external devices. It also has pre-charge function for charging...

Features
Ultra Low IQ when Standby, Ibat<5uA
16V Input Standoff Voltage
4.2V Charge Termination Voltage
Charge Current Programmable, Up to 1.2A
Output Disconnect and SCP at 5V Output
5V/0.4A Output Power
Up to 94% Efficiency for Boost Converter
Functioning with NO BATTERY
Logic Control Shutdown and Thermal Shutdown
ESOP8 Package

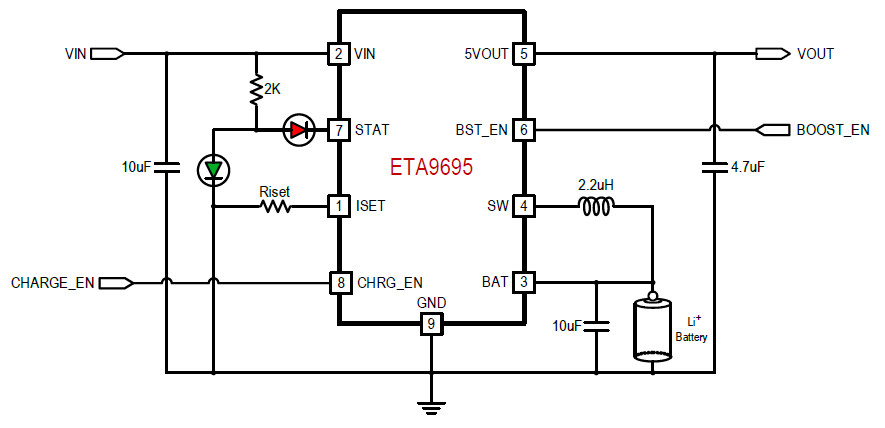

应用电路图：
