GMT（致新） G2790BK11U-K TQFN4X4-32 带电荷共享功能的TFT-LCD 10-CH电平移位器

General Description
The G2790B is a 10-CH high voltage level shifter with
charge sharing functions for TV and monitor LCD applications.
It converts logic level signals from Timing
Controller (T-CON) to high level signals used by the
LCD panel. The outputs are switching from VGL_GOP
to VGH, with capacitive loads up to 4.7nF.
The G2790B generates reset function. Once XAO
reaches reset level, output channels will pulled to VGH.
In addition to, the G2790B also generates OCP&SCP
function. Once OCP&SCP reaches fault conditions,
output channels will be Hi-Z.
The G2790B features extensive protection functions
that include OCP, SCP, OTP. It is available in a

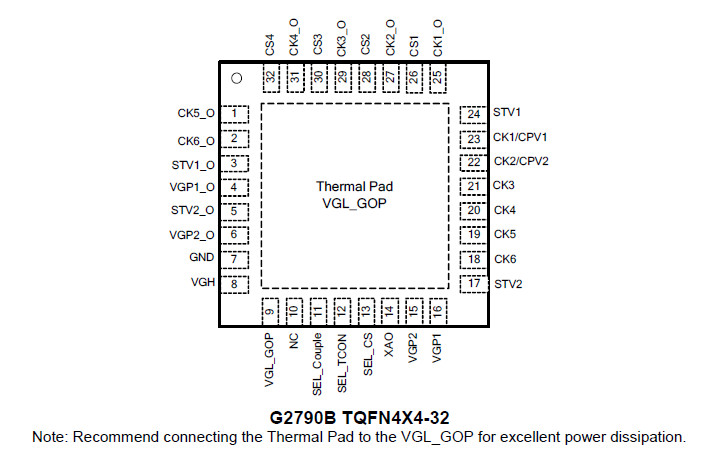

TQFN4X4-32 package.

应用原理图：
