产品详情

GMT（致新） G5567SQG1U QFN6X6-40 液晶电视用6-CH偏置电源

General Description
The G5567 DC-DC converter provides six regulated
voltages required by thin-film transistor (TFT) liquid
crystal displays (LCD) panels. All output voltages are
programmable.
The VIO and VCORE buck converters are for the T-CON.
The VAVDD boost converter and VHAVDD buck converters
are for the source driver and Gamma buffer. Charge
pump VGH and VGL are for the gate driver or level
shifter. VGH voltage is with temperature compensation
for the Gate in Panel (GIP) technology.

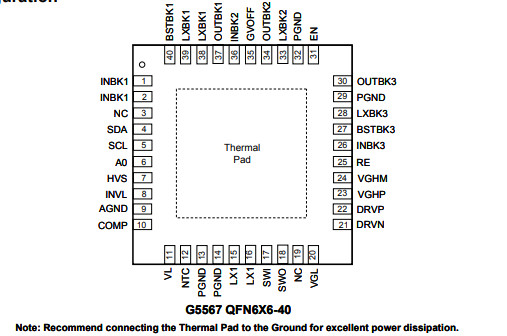

应用原理图：
