| 型号： | ETA5122V500NS8F |
| 厂 商： | 中国 |
| 品牌/商标: | ETA |
| 产品类别： | 钰泰/ETA- |
| 联系人: | 颜先生/William |
| 电话： | 0755-82170220,21001680 |
ETA5122V500NS8F 20V输入，2uA超低IQ，高PSRR, 200mA LDO
20V Input, 2uA Ultra-Low IQ, High PSRR, 200mA LDO
ETA5122 is a fixed output, low-dropout (LDO) low-power linear voltage regulator that features ultra-low standby current as low as 2uA. It can withstand input voltage up to 20V and deliver 200mA output current, at least.
Features
20V Input Voltage
2uA Ultra-low IQ
200mA Output Current
Stable with a Wide Range of Ceramic Capacitor
300mV Dropout Voltage for 100mA at VOUT = 2.8V
RoHS Compliant

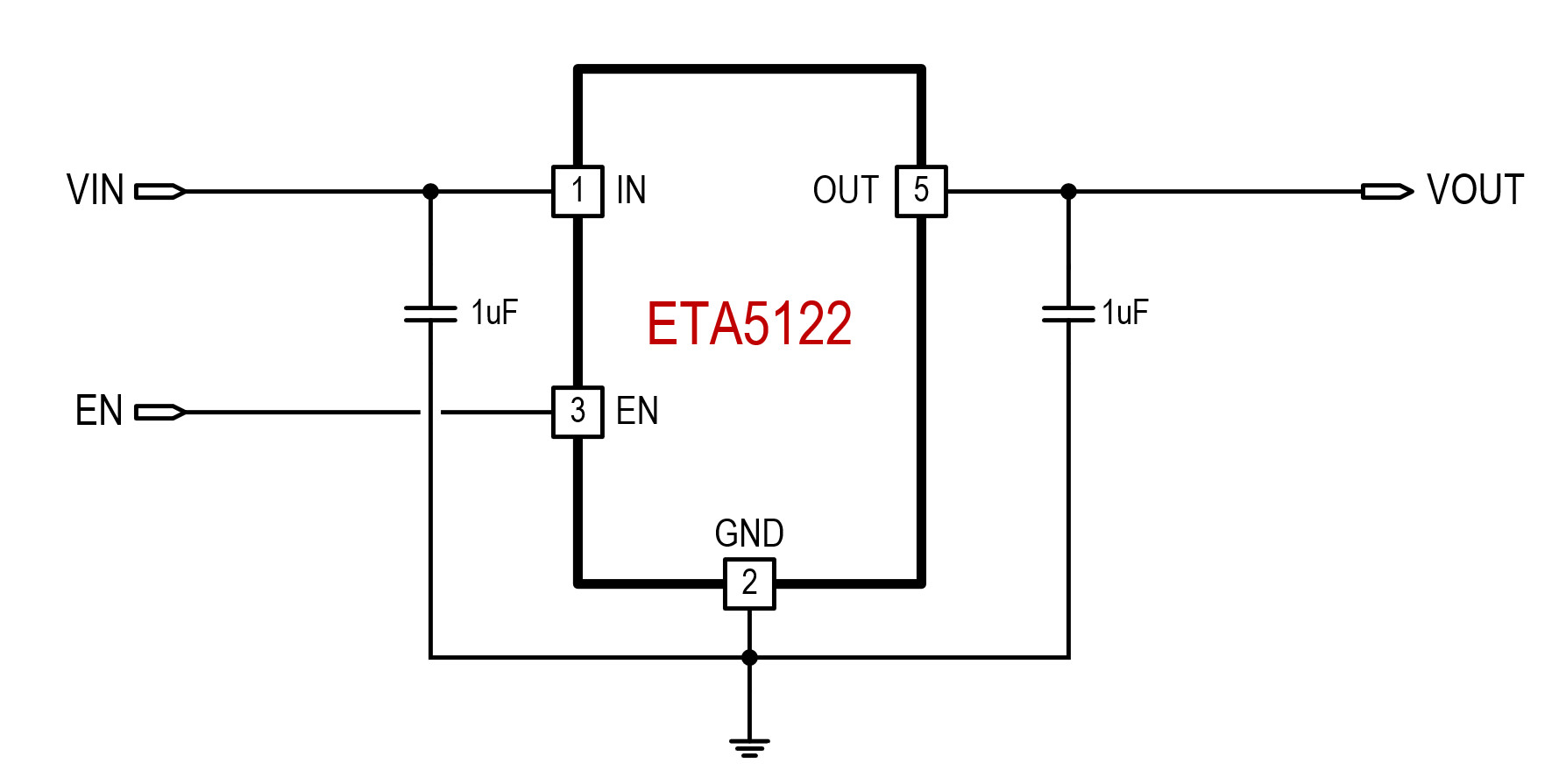

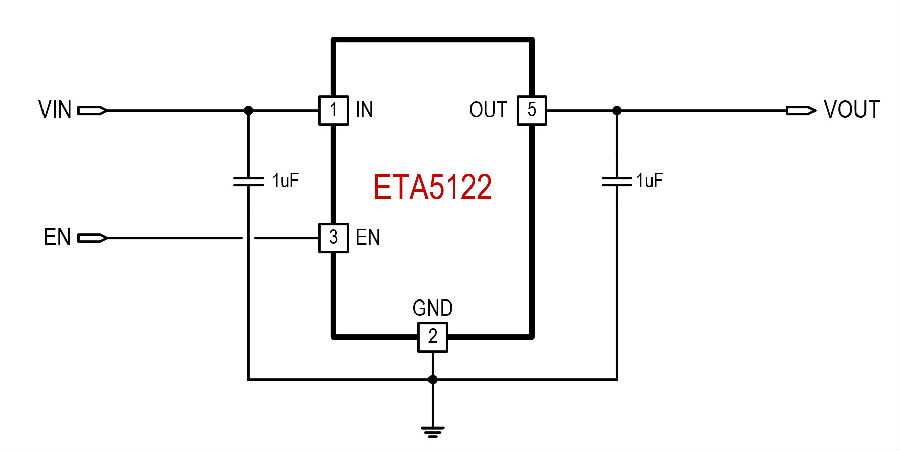

应用电路图：
