| 型号： | ETA5095V33S8D |
| 厂 商： | 中国 |
| 品牌/商标: | ETA（钰泰） |
| 产品类别： | 钰泰/ETA- |
| 联系人: | 颜先生/William |
| 电话： | 0755-82170220,21001680 |
ETA5095V33S8D 电子元器件 ETA钰泰 封装SOT89-3 40V输入，150mA线性调节器
40V Input, 150mA Linear Regulator
ETA5095 is a linear regulator features wide input range, high power-supply rejection ratio(PSRR) and low noise. The device provides fixed output voltages of 3.3V and 5V. The output voltage is also adjustable. It can be programmed by a resistor divider from 1.5V to 24V.
Features
Wide Input Voltage Range: From 6V to 40V
Programmable Output Voltage: From 1.5V to 24V
Up to 150mA Output Current
Very Accurate Output Voltage: 3% Over Temperature and Input Voltage
Accurate EN threshold for setting external UVLO
High PSRR, 60dB
Integrated Thermal and Current Limit

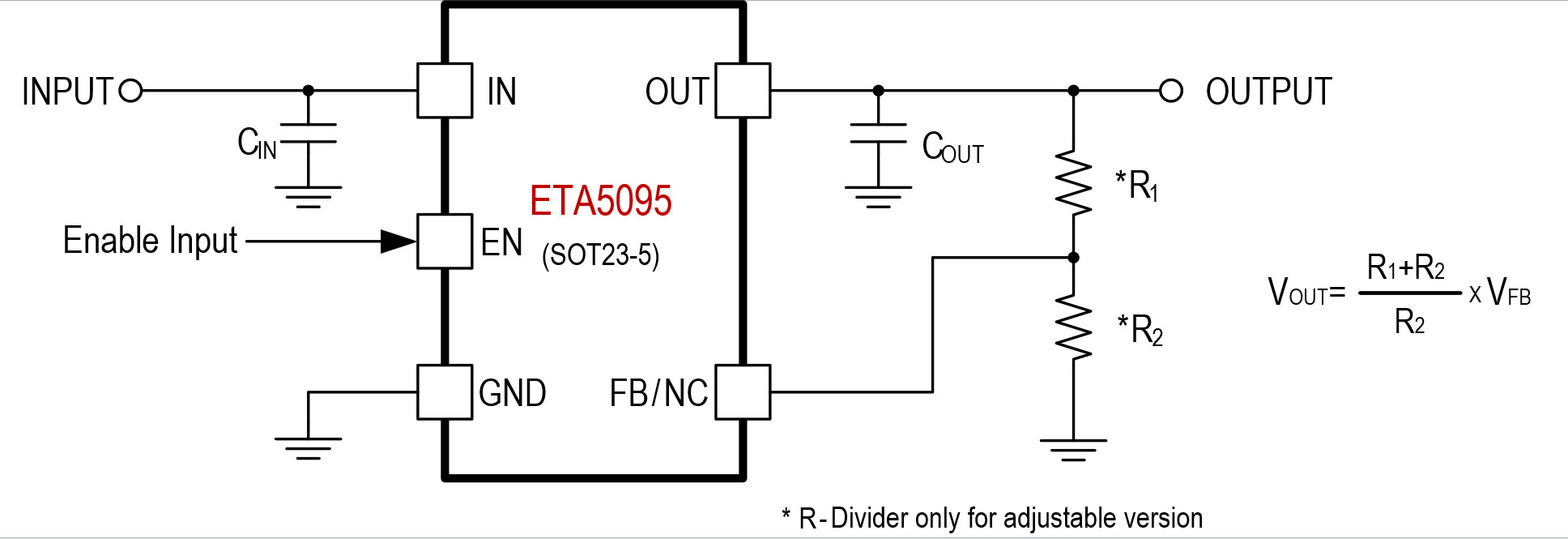

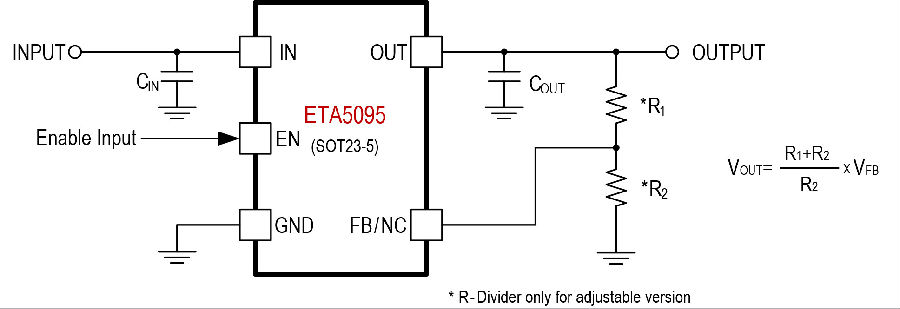

应用电路图：
