| 型号： | ETA5094V50S8D |
| 厂 商： | 中国 |
| 品牌/商标: | ETA（钰泰） |
| 产品类别： | 钰泰/ETA- |
| 联系人: | 颜先生/William |
| 电话： | 0755-82170220,21001680 |
ETA5094V50S8D 40V输入，150mA线性稳压器，固定输出电压
40V Input, 150mA Linear Regulator with Fixed Output Voltage
ETA5094 is a linear regulator features wide input range, high power-supply rejection ratio(PSRR) and low noise. The device provides fixed output voltages of 3.3V and 5V.
Features
Wide Input Voltage Range: From 6V to 40V
Fixed Output Voltage: 3.3V and 5V
Up to 150mA Output Current
High PSRR, 60dB
Integrated Thermal and Current Limit

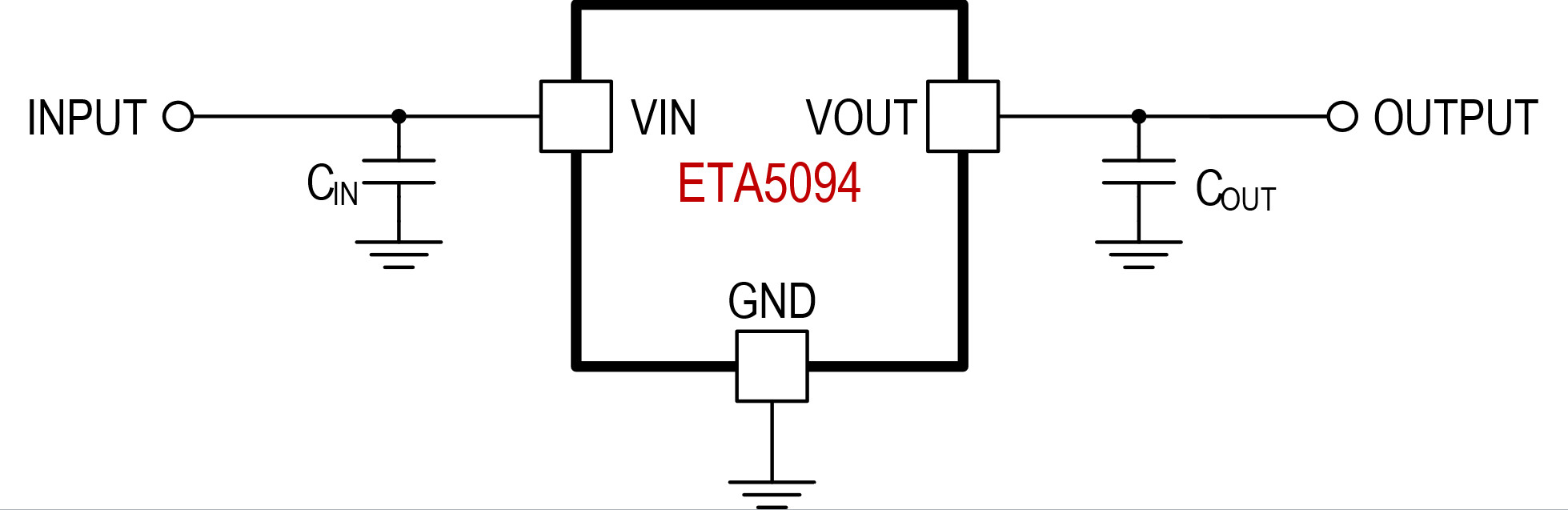

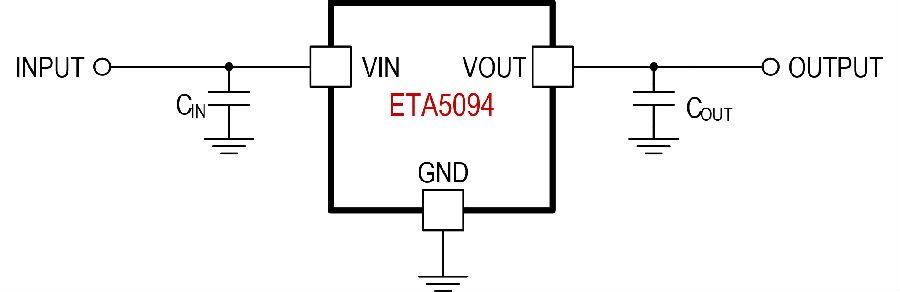

应用电路图：
