ETA5060V0D2I 电子元器件 ETA钰泰 封装DFN2x2-8 电源管理芯片

1A, Low IQ, High Accuracy, Fast Transient Low Dropout Voltage Regulator
ETA5060 is a low dropout (LDO) voltage regulator capable of sourcing 1A with only 140mV of dropout. ETA5060 output is adjustable with external resistors from 0.8V to 5V. ETA5060 wide input-voltage range supports operation as low as 1.8V and up to 5.5 V.

Features
Programmable Output Voltage Configuration
High Accuracy Output Voltage: ±2%
Wide Input Voltage Range: 1.8V to 5.5V
Wide Output Voltage Range: 0.8V to 5V
Low Power Consumption: 20μA Quiescent Current
Low Dropout: 140mV at 1A
Fast Transient Response
Stable with Small 1μF Capacitor
Inrush Current Protection
Available in SOT89-5, HFBP1.2×1.6-8, DFN1.2×1.6-8, DFN2x2-6, and DFN2x2-8

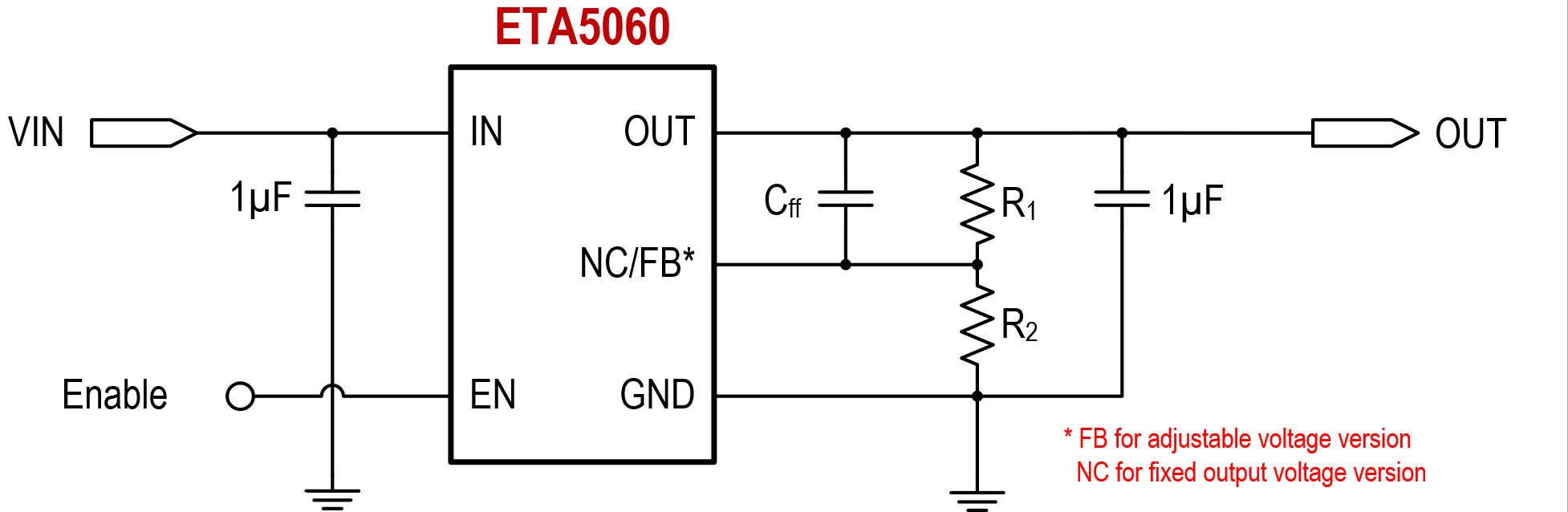

应用电路图：
