ETA6012 5V/1A高亮度LED驱动器
5V/1A High Brightness LED Driver
ETA6012 is a LED driver with a constant current of up to 1A. The constant driving current can be set by external resistance. It can drive LEDs for handheld lighting.
Features
Wide range input: 2V to 6V
Up to1A constant driving current
Adjustable driving current set by external resistance
Short circuit protection
Over temperature protection
Prevent output to input reverse current
ESOP-8 Package
Applications
Handheld Lamp
Flashlight

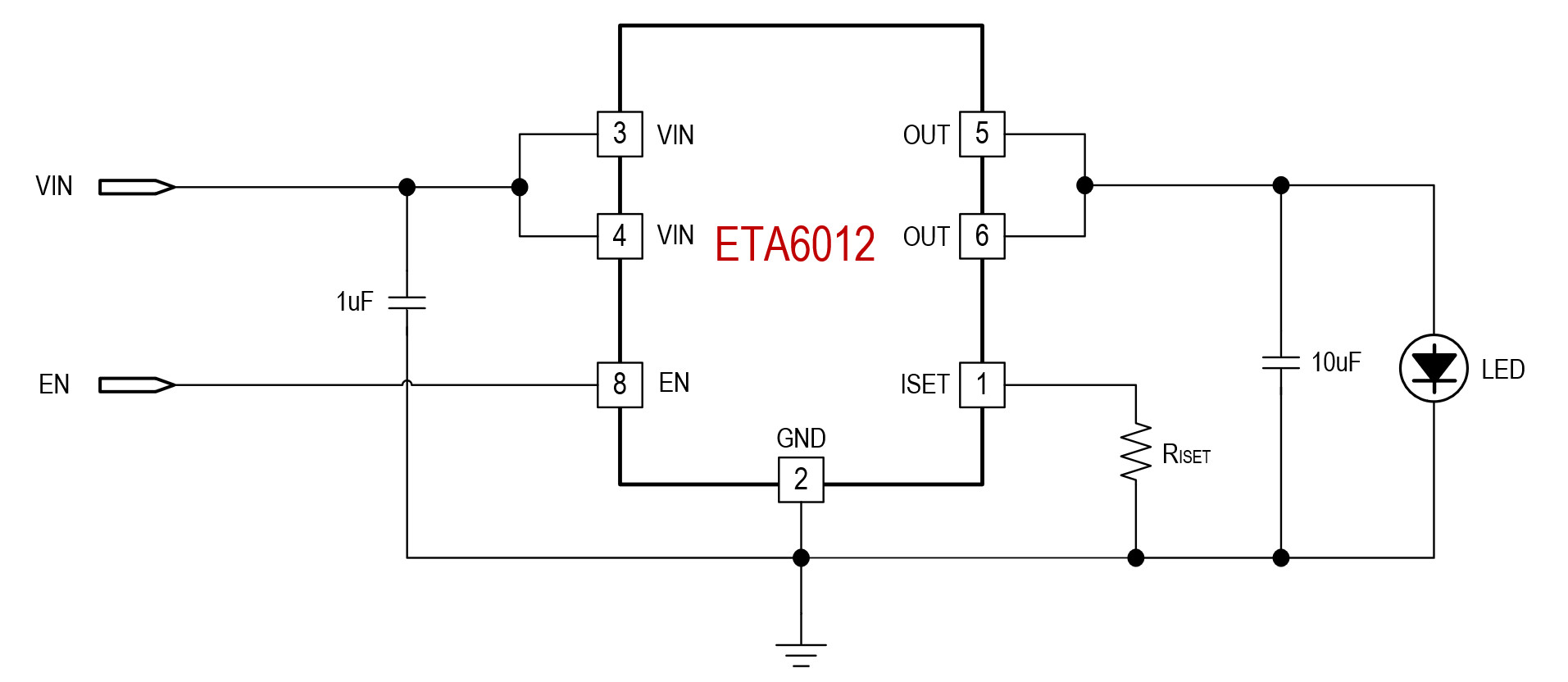

应用电路图：
