| 型号： | ETA6123 |
| 厂 商： | 中国 |
| 品牌/商标: | ETA（钰泰） |
| 产品类别： | 钰泰/ETA- |
| 联系人: | 颜先生/William |
| 电话： | 0755-82170220,21001680 |
ETA6123 80V TVS过压保护IC 可替代WS3210
Over-Voltage-Protection IC with 80V TVS in FCQFN-9 and SOT23-6
ETA6123 is an Over-Voltage-Protection (OVP) IC with an ultra-low 40mΩ RDSON high current high voltage MOSEFT and an integrated TVS device to improve surge protection.
Features
Over voltage protection up to 24.5V
40mΩ switch resistance
60nS fast transient response
Internally set current limit and VOUT short protection
Integrated 80V TVS
FCQFN-9 package, compatible to WLCSP-9 with better reliability, SOT23-6 package also available

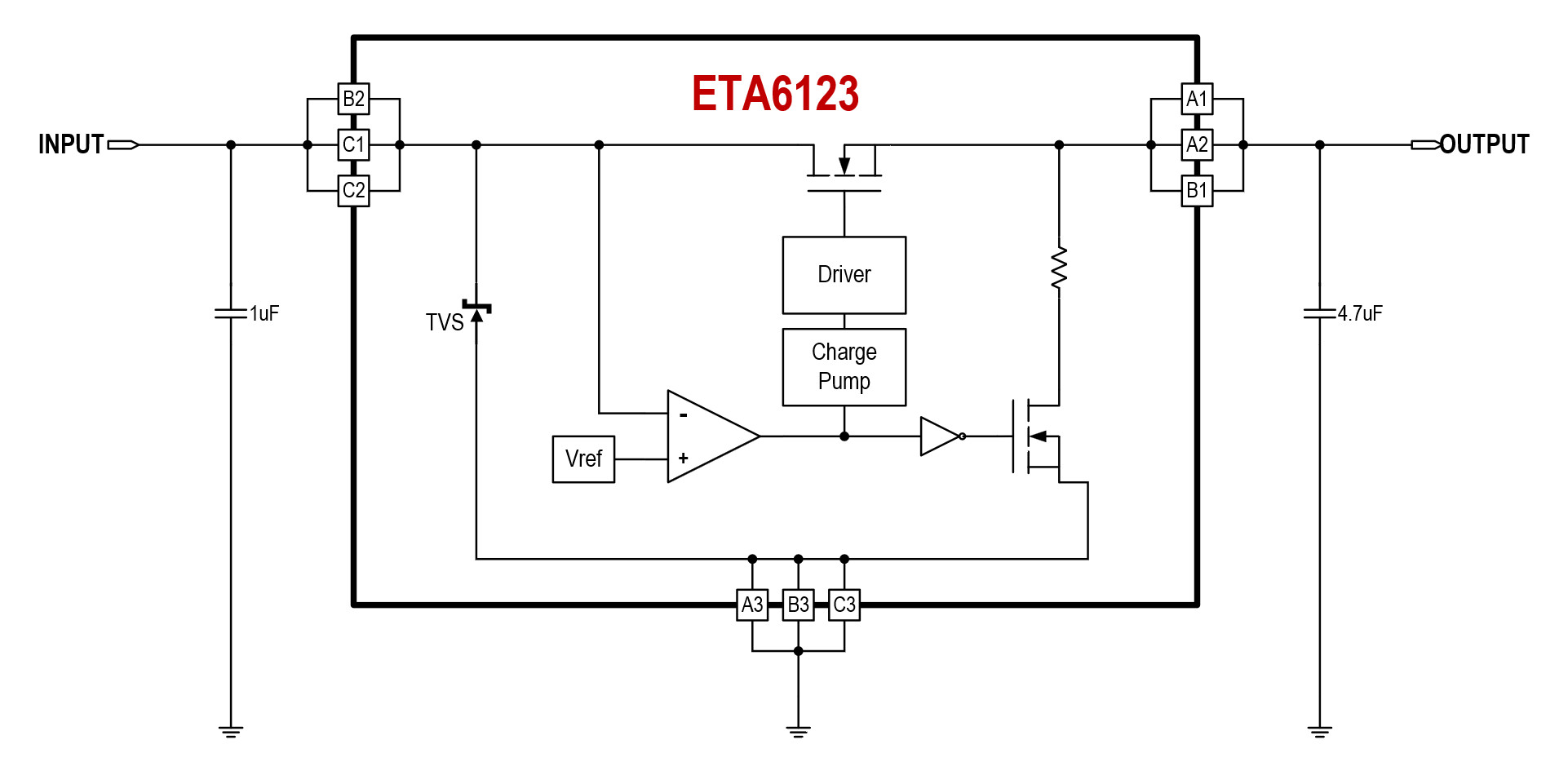

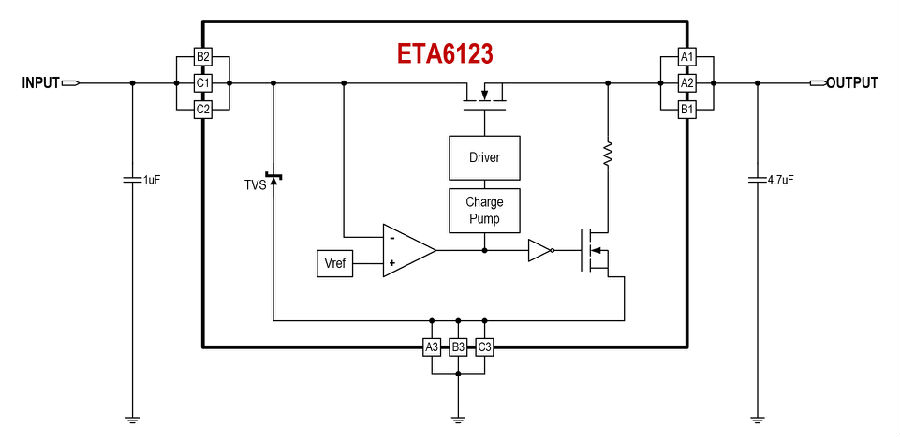

应用电路图：
