南芯-SC8723 QFN 同步升降压变换器 科瑞芯现货

Descriptions
SC8723 is a synchronous 4-switch buck-boost converter with four integrated switches. It provides excellent power efficiency and voltage regulation no matter the output voltage is higher, lower or equal to the input voltage. SC8723 supports very wide input and output voltage range. It can support applications from 2.7V to 24V input range and 3V to 24V output range and provides up to 3.5A output current.
SC8723 employs average current-mode control. The output voltage is adjusted by FB pin with resistors. The switching mode (PSM /FPWM) and the switching frequency can be adjusted by external setting. The device also provides programmable output current limit which supports flexible design for different applications.
SC8723 supports internal current limit, input under voltage protection, output over voltage protection, output short protection, FB short circuit protection and over temperature protection to ensure safety under different abnormal conditions.

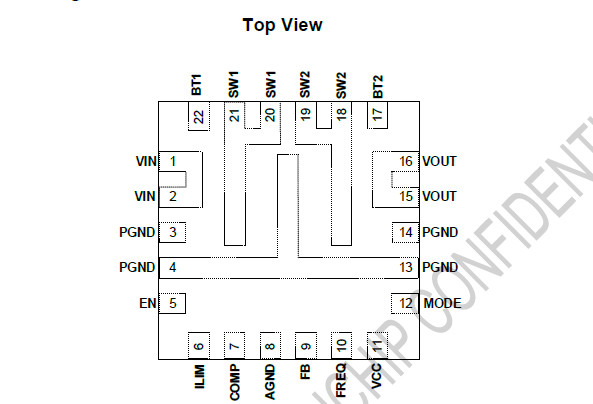

The IC is in a 22 pin 3x3 QFN package.

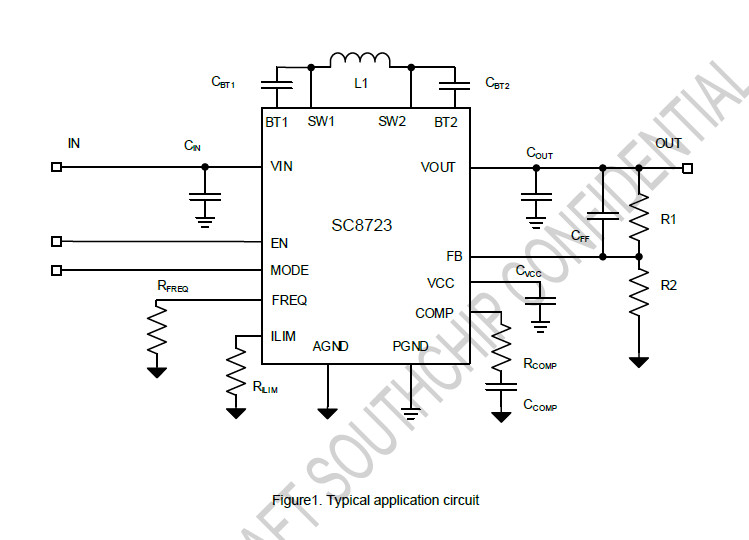

典型应用电路：
