产品详情

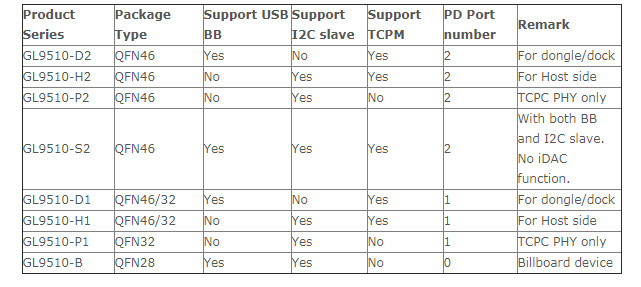

GL9510-P1 电子元器件 GENESYS/创惟科技 封装QFN-32 PD控制器 全新原装

产品特点
USB Power Delivery Spec 3.0 /2.0 compliant.
Compliant to Type-C port controller specification (TCPCI).
Support Device Policy Manager and Type-C Port Manager (TCPM).
Support 2PD ports with charge-through function and DisplayPort Alternate mode on Type-C.
Support all Type-C Channel Configuration (CC) function and BMC PHY.
Support configurable Source, Sink and DRP (Source-Sink).
Support Programmable Power Supply (PPS).
Support Dead Battery function by presenting ‘Rd’ on CC pins.
Support built-In 3.3V VCONN power switch up to 300mA loading
Support built-In 6-channel 10bit ADC to monitor voltage/current/temperature.
Support built-in FS Billboard device.
Support SBU/AUX switch for DisplayPort Alternate mode function.
Support SMBUS/I2C slave for system control.
Support I2C master / GPIOs to configure PMIC / Mux ICs in the system.
Support SPI interface to upgrade Firmware or configurations.
Support Firmware upgrade via USB and I2C interface.
Support integrated micro-processor.
Support built-in 3.3V and 1.8V output LDO.
Ultra low power consumption when the type-c is disconnected.
Applications:
Type-C Video Adapters with PD Charging through
Type-C Multi-function Dock
Host application
LCD monitor
