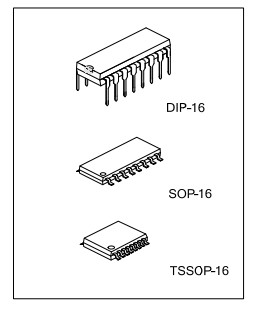

4051L 电子元器件 UTC友顺 封装DIP-16 控制模拟开关

DESCRIPTION
UTC 4051 is single 8-channel analog multiplexers/demultiplexers
for application as digitally–controlled analog switches.
The device has three binary control inputs and an inhibit input. It
feature low ON impedance and very low OFF leakage current.
Control of analog signals up to the complete supply voltage range
can be achieved.

FEATURES
Wide Analog Voltage Range: VDD–VEE = 3V~18V.
(Note: VEE must be≦VSS)
Break-Before-Make Switching Eliminates Channel Overlap.
Linearized Transfer Characteristics
Implement an SP8T solid state switch effectively.
Pin–to–Pin Replacement for CD4051
