产品详情

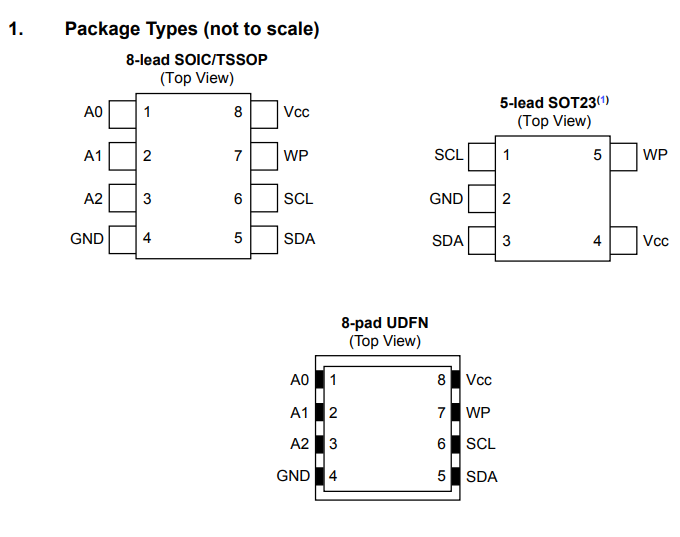

Microchip(微芯) AT24CS04-STUM-T 封装SOT-23-5

Features

Low-Voltage Operation:

– VCC = 1.7V to 5.5V

Internally Organized as 128 x 8 (1K) or 256 x 8 (2K)

128-Bit Unique Factory-Programmed Serial Number

– Permanent read-only value

– Unique across entire CS Series of Serial EEPROMs

Industrial Temperature Range: -40°C to +85°C

I2C-Compatible (Two-Wire) Serial Interface:

– 100 kHz Standard mode, 1.7V to 5.5V

– 400 kHz Fast mode, 1.7V to 5.5V

– 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V

Schmitt Triggers, Filtered Inputs for Noise Suppression

Bidirectional Data Transfer Protocol

Write-Protect Pin for Full Array Hardware Data Protection

Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA maximum)

8-Byte Page Write Mode:

– Partial page writes allowed

Random and Sequential Read Modes

Self-Timed Write Cycle within 5 ms Maximum

ESD Protection > 4,000V

High Reliability:

– Endurance: 1,000,000 write cycles

– Data retention: 100 years

Green Package Options (Lead-free/Halide-free/RoHS compliant)

Die Sale Options: Wafer Form and Tape and Reel Available
