General Description

The G5684 is a monolithic step-down switch mode regulator with a built in internal power MOSFET. It achieves 4A continuous output current over a wide switching frequency range with excellent load and line regulation.

Current mode operation provides fast transient response and eases of loop stabilization.

Fault condition protection includes cycle-by-cycle current limiting, output short circuit protection and thermal shutdown. In shutdown mode the regulator draws less than 1μA of supply current. Internal soft-start minimizes the inrush supply current at initial startup.

The G5684 requires a minimum number of readily available standard external components. It is available in SOP-8 (FD) package.

Features

■ 4A Output Current

■ 75mΩ Internal Power MOSFET Switch

■ Stable with Low ESR Output Ceramic Capacitors

■ Up to 95% Efficiency

■ Less Than 1μA Shutdown Current

■ Wide Switching Frequency Range from 300kHz~1.4MHz

■ Thermal Shutdown

■ Cycle-by-Cycle Over Current Protection

■ Output Adjustable from 0.8V to VIN

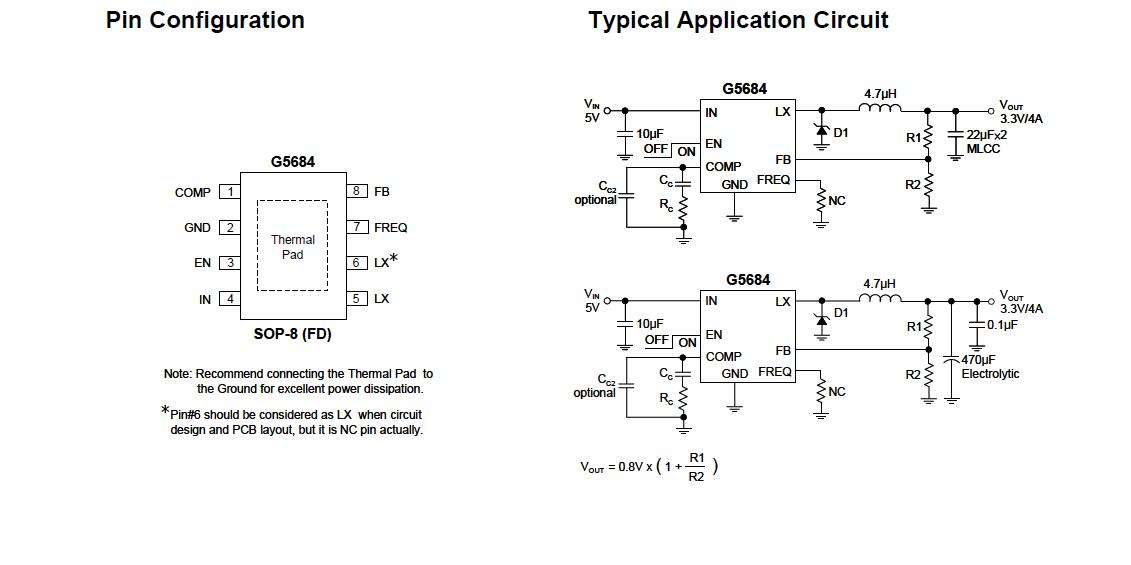

■ Available in SOP-8 (FD) Package

Applications

■ TV

■ Distributed Power Systems

■ Pre-Regulator for Linear Regulators
